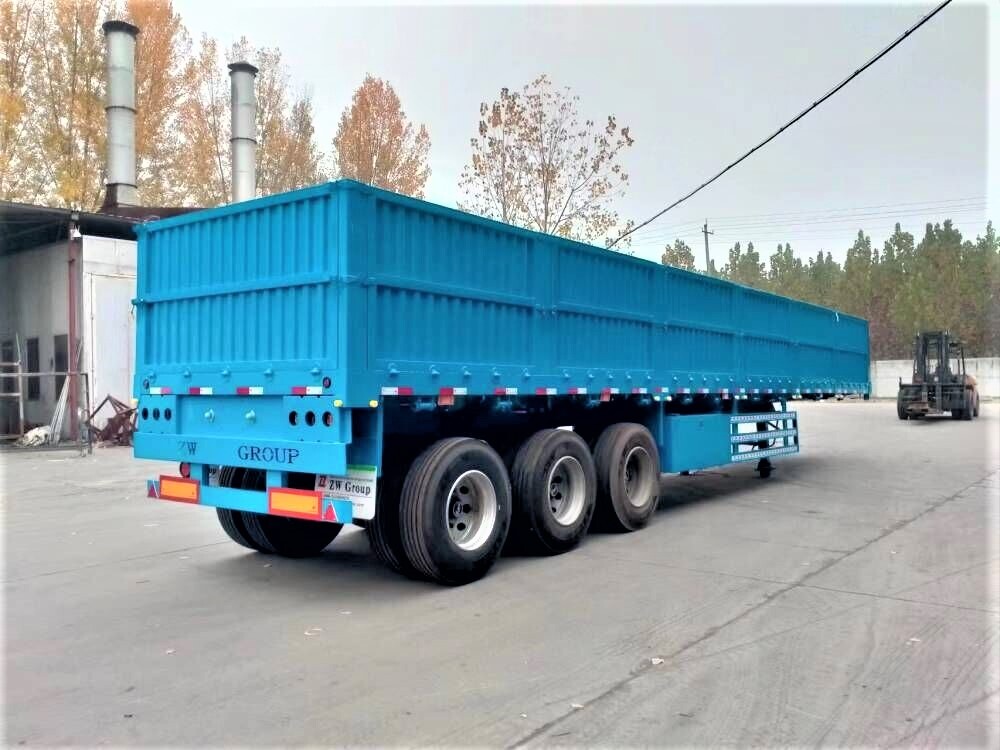

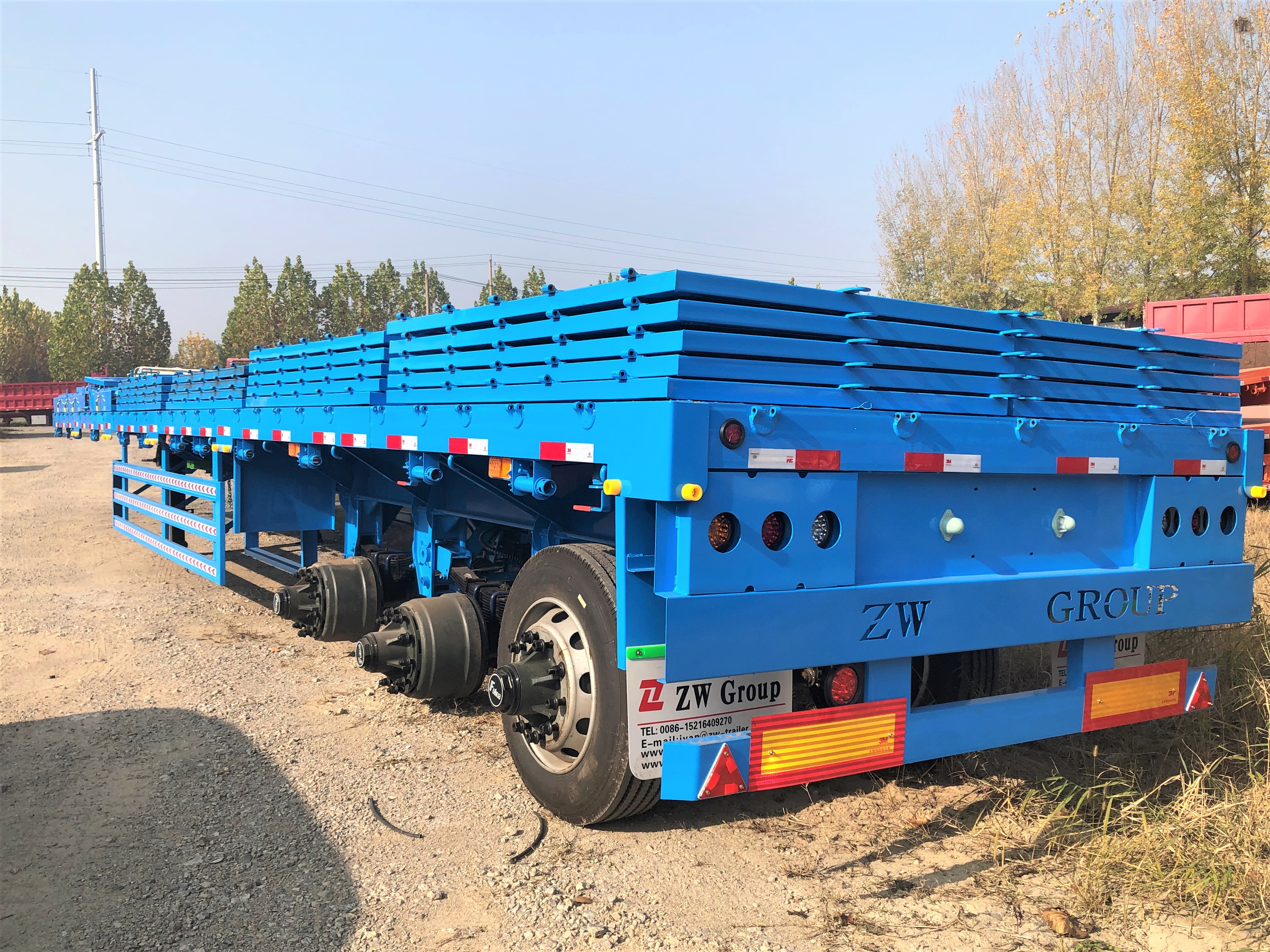

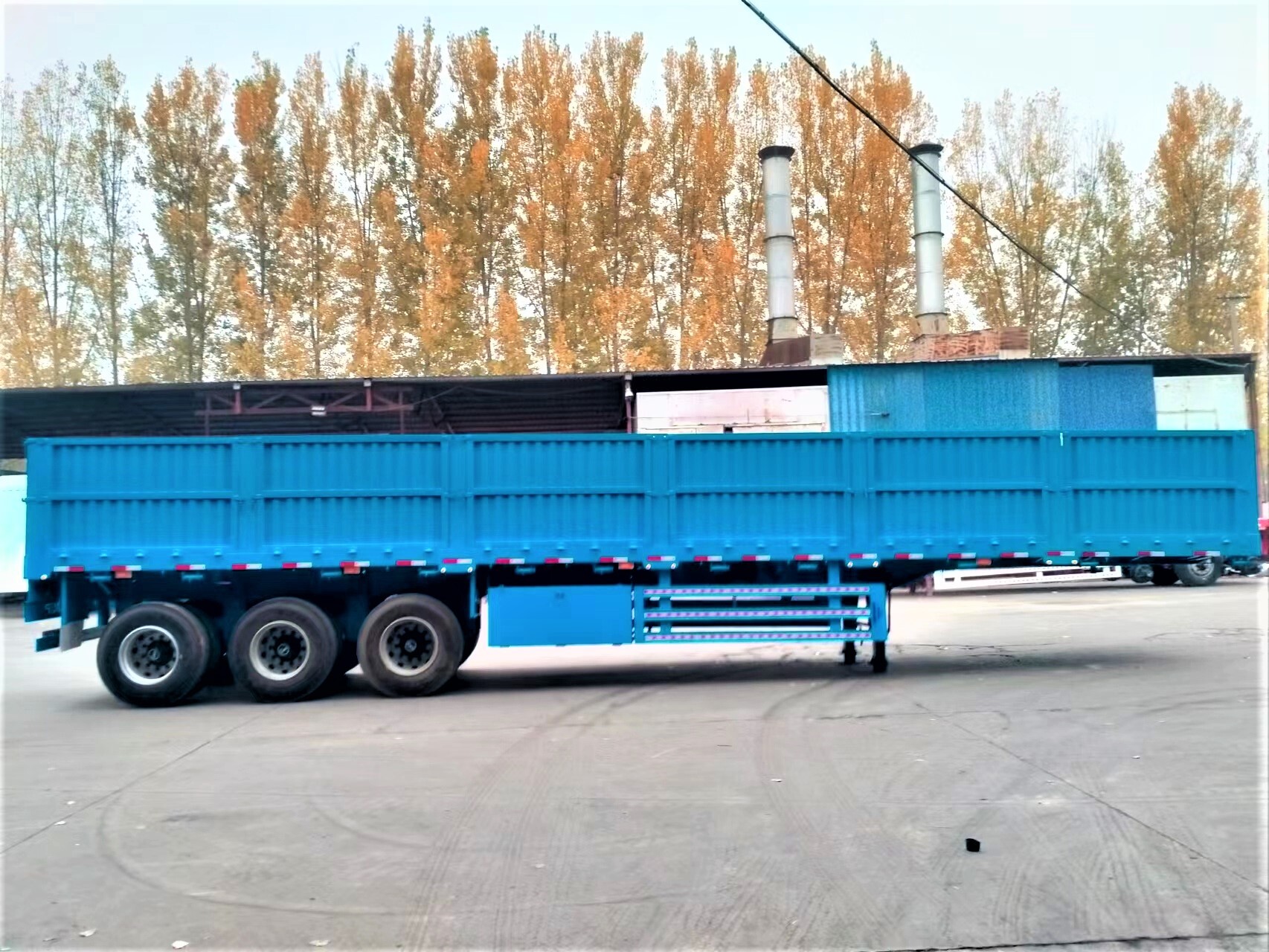

The 60ton Sidewall Truck Trailer from ZW Trailer is engineered for heavy-duty, flexible freight operations. Based on a robust flatbed semi-trailer platform with detachable side walls, this 3 axle sidewall trailer is ideal for bulk cargo, palletized loads, and, after removing the side fences, direct container or flatbed transport. Built with industry-grade steel beams and optional air or mechanical suspension, the trailer balances payload capacity, durability, and operational adaptability for fleets and logistics businesses seeking dependable performance.

The main beam uses Q345B steel with a 500mm height and multi-plate construction (upper plate 14mm, middle 8mm, bottom 16mm), delivering proven strength under repeated heavy loads. Side beams are formed from Q235 steel channels (16mm or 18mm), providing secure lateral containment while remaining removable when flatbed operation is preferred.

ZW Trailer employs automatic welding for the longitudinal beams and shot peening to relieve residual stress. Beams pierce the stringers and receive full-body welds, producing a consistent, fatigue-resistant chassis. This assembly approach minimizes maintenance and extends service intervals compared to less automated fabrication methods.

• High payload capacity: Rated up to 60 tons, this trailer supports heavy loads while complying with axle and dimension standards when properly configured.

• Detachable side walls: Side walls (typically 600–800mm in height) are removable to convert the trailer to a flatbed, maximizing versatility across cargo types.

• 3-axle stability: A three-axle arrangement (13T/16T options with FUWA or BPW components) ensures load distribution and road stability for highway and regional hauling.

• Customizable undercarriage: Choose between mechanical or air suspension to match operating conditions, payload profiles, and driver comfort expectations.

• Wheel & tire options: Multiple tire and rim sizes are available to suit road conditions, load ratings, and fleet standards.

• Robust fabrication: Automated welding and shot peening reduce stress points and enhance structural longevity.

This 60ton sidewall model is particularly suited to operations that require frequent transitions between bulk cargo and open-bed transport. Typical applications include:

1. Bulk agricultural products (grain bags, fertilizer sacks) where side walls assist loading and prevent shifting during transit.

2. Construction materials such as bricks, sandbags, or bundled lumber where side containment improves safety and load retention.

3. Logistics and parcel consolidation where modular loading with side walls simplifies sorting and protects cargo during transport.

4. Intermodal or container-adjacent operations — when side walls are removed, the trailer can accommodate containerized freight or operate as a flatbed for machinery and oversized items.

ZW Trailer offers competitive lead times with typical delivery of 20–30 days and a monthly supply capacity of 300 sets. When ordering, specify axle rating (13T or 16T), suspension preference, tire and rim sizes, and any side wall custom dimensions. Working with an experienced supplier ensures the trailer is configured to legal requirements and operational needs in your target markets.
