Detailed Description

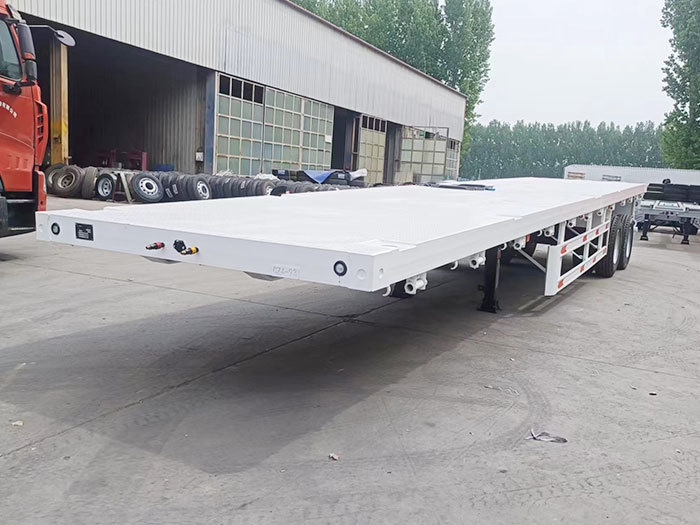

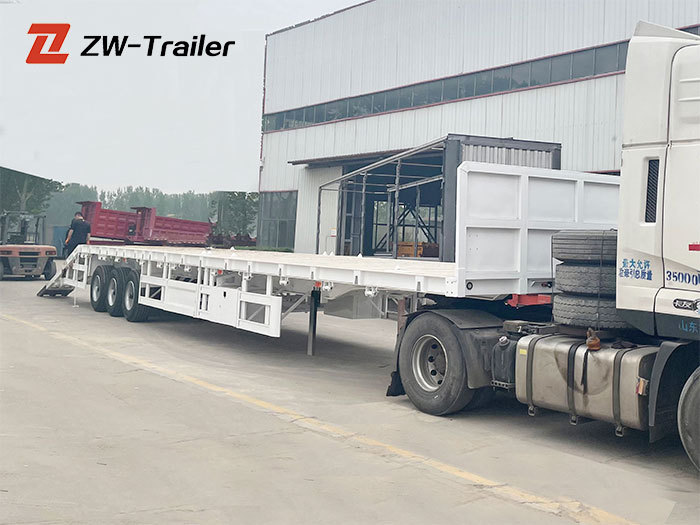

The ZW Group 3 Axle Flatbed Semi Trailer with ladder is engineered to serve professional transporters who require a resilient, versatile platform for heavy and oversized loads. Rated for a 60-ton payload, this tri-axle flatbed integrates high-strength Q345B/T700 steel main beams, a reinforced deck, and carefully selected running gear to create a dependable trailer for intermodal containers, construction materials, steel products, heavy machinery and specialized cargo. The integrated rear access ladder improves safety and operational efficiency—an essential detail for loading, securing, inspection and tarping operations.

Structural Materials and Chassis Engineering

At the core of the trailer is a welded I-beam main beam fabricated from Q345B or T700 high-strength manganese steel. This choice balances tensile strength, ductility and fatigue resistance—qualities needed for repeated heavy loading cycles. The main beam is thickened and welded into a continuous I-section to resist torsion, bending and impact stresses encountered during long-haul and off-site operations. Cross members, reinforcement plates and gussets are strategically positioned based on stress analysis to preserve platform flatness under load and to extend service life.

Deck and Surface Protection

Deck options include 3mm or 4mm diamond steel plate, providing a non-slip surface and excellent wear resistance. Before painting, every chassis undergoes sandblasting to remove mill scale and contaminants. A two-component anti-corrosive primer is applied, followed by a polyurethane topcoat that resists chipping, UV degradation and corrosion. This multi-stage protection is specifically designed to withstand coastal and humid environments often faced by export customers.

Axles, Suspension and Running Gear

Stability and load distribution are ensured with three 13-ton axles from reputable manufacturers such as FUWA or BPW (standard), with ZW-branded alternatives available. The standard suspension is a heavy-duty American-type mechanical system with multi-leaf springs (10/13 leaf options). This configuration excels at shock absorption and consistent load distribution across the tri-axle group, minimizing localized overload and reducing long-term chassis fatigue. For specialized requirements, an airbag suspension option is available to improve ride compliance and adjustable ride height for intermodal transfers.

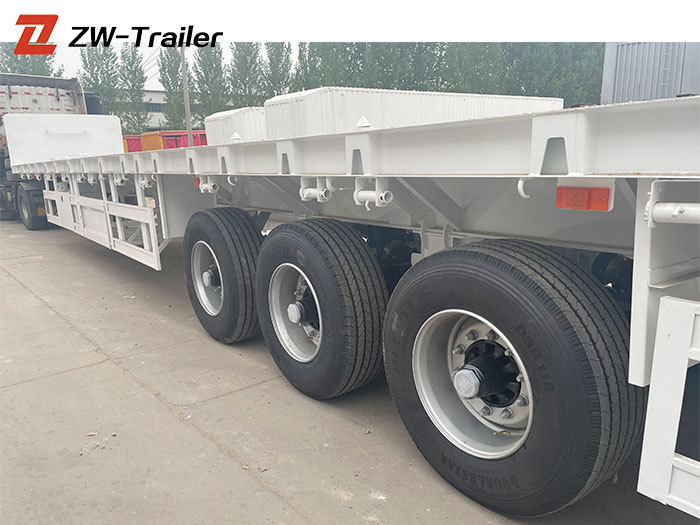

Tires, Rims and Ground Contact

The trailer ships with 12 heat- and load-resistant radial tires—12.00R22.5 or 315/80R22.5—mounted on reinforced steel rims. This arrangement optimizes traction, heat dissipation and tread life under prolonged highway speeds and heavy loads. Correct tire selection and inflation are critical for safety and fuel efficiency; the trailer’s specification supports standard commercial tire pressure and maintenance practices.

Braking, Electrical and Safety Systems

The ZW flatbed uses a dual-line pneumatic braking system with a WABCO or equivalent relay/emergency valve to ensure reliable and rapid stopping capability under full load. The 24V electrical system conforms to ISO 1185 standards to maintain compatibility with global tractor units and to support lighting, indicators and ancillary electrical devices. Safety provisions include reflective markings and robust mounting points for straps and chains. The trailer’s design favors predictable handling and straightforward integration into modern fleet braking management.

Container Handling and Flexibility

Standard equipment includes 12 sets of ISO twist locks to secure shipping containers—allowing configurations for one 40ft, two 20ft, or a single 20ft container plus general cargo. The flat deck geometry facilitates rapid transitions between containerized freight and break-bulk cargo, making the trailer a flexible asset for intermodal terminals, ports, regional hauliers and construction logistics.

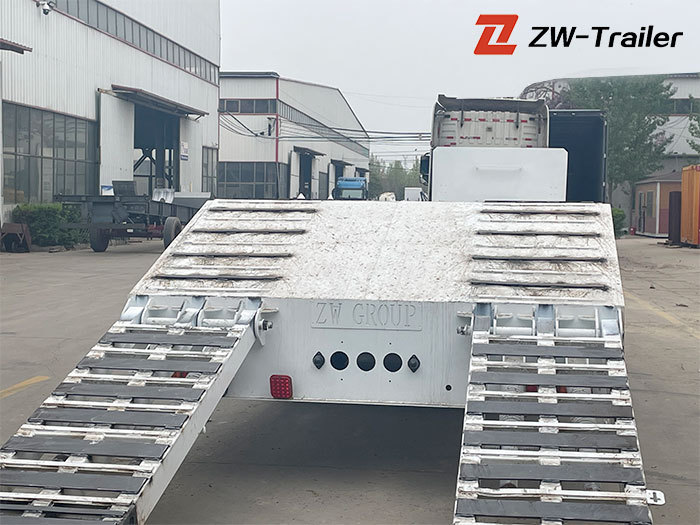

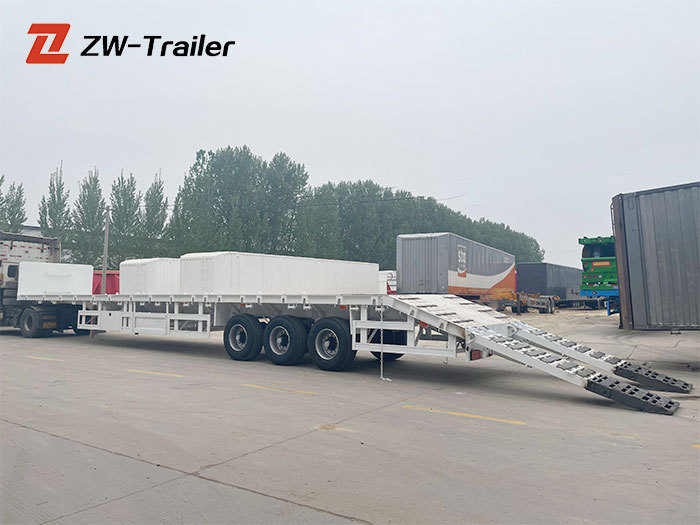

Integrated Rear Ladder — Practical Safety Addition

The robust rear access ladder is engineered for frequent use and safe vertical access. It shortens the time needed for cargo securing, tarping and visual inspections, and reduces the need for portable ladders that can create inefficiencies or safety hazards. The ladder is located to avoid interference with container operations while remaining within easy reach for crew access.

Landing Gear, Kingpin and Coupling Interface

The trailer is fitted with JOST or equivalent 28-ton two-speed landing legs providing stable handlings during coupling and uncoupling. Kingpin options include the industry-standard 2" (50#) or heavy-duty 3.5" (90#) bolted types crafted from high-tensile steel to ensure a secure connection to the tractor unit. All coupling interfaces are manufactured to international norms for predictable fitment and replacement.

Performance Verification and Quality Assurance

Every ZW Group heavy haul trailer undergoes rigorous static and dynamic load testing to validate structural integrity. Test procedures simulate the full 60-ton payload under varied stress patterns to verify main beam deflection, cross-member response and weld joint endurance. These tests exceed baseline industry norms to ensure the trailer performs reliably under real-world conditions. Documentation of load tests can be provided with shipments as part of quality assurance.

Typical Applications and Target Users

This 3 axle flatbed semi trailer is purpose-built for a range of heavy transport tasks including:

• Intermodal container distribution between ports, depots and inland terminals.
• Haulage of construction materials such as beams, precast elements and earthmoving plant.
• Transport of steel products—plates, coils and fabricated steel assemblies.
• Movement of heavy industrial equipment and non-containerized general cargo.

Primary beneficiaries are fleet operators, port operators, project logistics teams, rental fleets and contractors who need a robust, easily configurable trailer with predictable long-term performance.

Operational Best Practices and Maintenance Guidance

To maximize uptime and total cost of ownership, operators should follow a structured maintenance plan: daily pre-trip checks (tires, lights, ladders, twist locks), weekly inspection of suspension shackles and spring packs, monthly torque checks for wheel nuts and kingpin, and scheduled grease intervals for landing gear and pivot points. Periodic chassis inspections for paint integrity and weld condition are recommended, particularly for vehicles operating in coastal or corrosive environments. Use of manufacturer-recommended service parts and authorised service centers helps preserve warranty and safety performance.

Customization and Optional Configurations

ZW Group offers customization to align with regional regulations and customer preferences: alternative axle brands and ratios, airbag suspension for ride comfort, additional lashing points, toolboxes, removable stakes, or tailored deck length and width within the engineering limits listed in the parameters. Customers should specify required options at order to ensure lead-time considerations and factory integration.

Logistics, Lead Time and Production Capacity

Standard lead time for factory production is 20–30 working days after receipt of deposit. ZW Group maintains a supply capacity of approximately 300 sets per month, enabling competitive delivery schedules for medium to large fleet orders. Packaging and export crating follow export norms to protect critical surfaces and mechanical components during sea and land transit.

Why Choose ZW Group — Credibility and Value

ZW Group positions this 3 Axle Flatbed Semi Trailer as a balance of structural integrity, operational safety and total cost efficiency. The selection of proven component brands (FUWA/BPW axles, JOST landing gear, WABCO-style braking components) and a rigorous paint and testing program deliver reliability in demanding operating environments. For operators evaluating heavy duty 3 axle flatbed trailer price against lifecycle value, this model is engineered to minimize downtime and maintenance while maximizing payload capability.

Compliance and Export Readiness

The trailer’s electrical system and coupling specifications adhere to widely recognized international standards (ISO 1185 for electrical connections). Paint systems and corrosion protection are selected to support export to humid and coastal regions. Customers requiring specific certification or additional documentation for customs clearance should consult their sales representative at order placement.

Ordering, Warranty and After-Sales Support

Standard warranty terms cover manufacturing defects and structural integrity per contract. ZW Group’s after-sales network provides spare parts, technical guidance and maintenance recommendations to ensure operational continuity. For large fleet procurements, extended after-sales packages and scheduled maintenance contracts may be arranged.

Frequently Asked Questions

Q1: What is the main benefit of the integrated ladder on this flatbed trailer?

The ladder enhances operator safety and efficiency by enabling safe, rapid access to the deck for inspection, lashing and tarping. It reduces the need for portable ladders and minimizes time spent on cargo handling tasks, which improves turnaround times at loading points.

Q2: Can this 60T flatbed trailer carry both containers and general cargo?

Yes. With 12 ISO twist locks installed as standard, the trailer can securely carry a single 40ft container or combinations of 20ft containers. The flatbed deck also supports a broad range of general cargo including steel, construction materials and machinery.

Q3: Is the paint rust-proof for coastal environments?

The sandblasting + two-component anti-corrosive primer + polyurethane topcoat system is designed to resist corrosion and weathering, making the trailer suitable for coastal and humid climates. Regular inspections and touch-up of damaged paint are recommended to maintain long-term protection.

Q4: What is the estimated lead time for a new order?

Standard production lead time is typically 20–30 working days after deposit. Custom configurations may extend lead time; customers should confirm timing during order placement.

Q5: What brand of axle and landing gear do you use?

ZW Group typically uses FUWA or BPW axles and JOST landing gear as standard choices. We can accommodate other reputable brands upon request to match operator preferences or regional service networks.

Final Remarks — Operational Advantages & ROI Considerations

For fleet managers assessing heavy duty 3 axle flatbed trailer price versus performance, the ZW Group 3 Axle 60 Ton Flatbed Semi Trailer offers a clear value proposition: a durable steel structure, internationally compatible components, and carefully applied corrosion protection. The integrated ladder and container-ready configuration reduce operational friction and increase versatility. When measured across payload capacity, maintenance intervals, and expected service life, the trailer is designed to deliver competitive lifecycle costs and dependable uptime for demanding logistics and transport operations.

For inquiries about pricing, volume discounts, factory inspections, or to Buy 60 ton flatbed trailer direct from factory, contact us. Our production capacity and quality control systems allow efficient handling of single-unit orders as well as large fleet procurement.
