Detailed Description

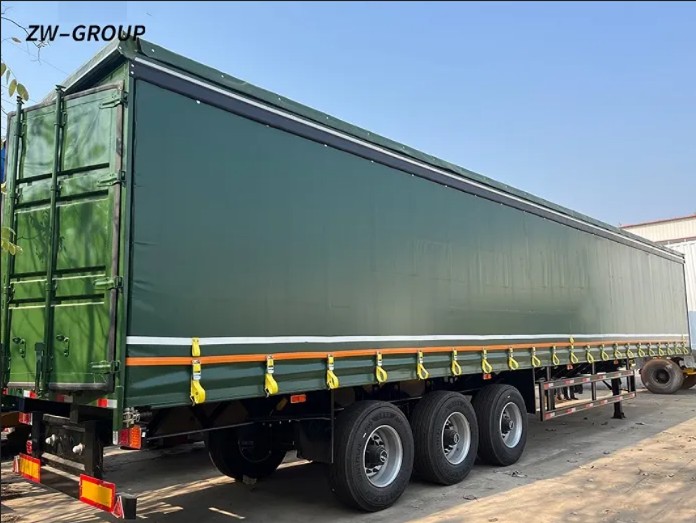

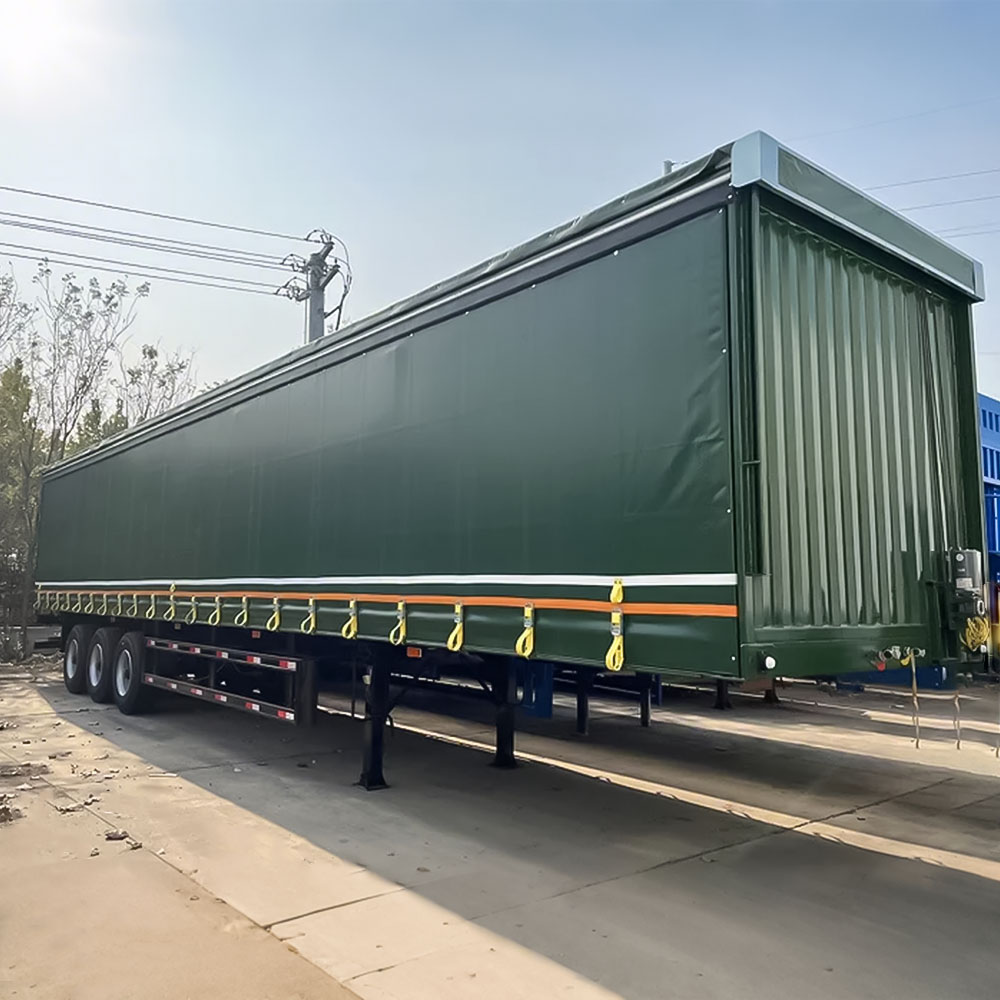

The Dry Van Curtain Semi Trailer by ZW Trailer merges the weatherproof protection of a fully enclosed dry van with the operational flexibility of a curtain-sided vehicle. Built in Shandong, China, this curtain semi trailer keeps cargo dry and secure while offering dramatic gains in loading speed, curb weight reduction and branding visibility compared with conventional box vans. It is an excellent choice for fleet operators who need a reliable dry van semi trailer that optimizes turnarounds and lowers operating costs.

Key Functional Benefits

• All-weather protection: The van body is fully closed and prevents rain, dust and environmental exposure, preserving cargo integrity in transit.
• Lightweight design: Curtain materials reduce tare weight by approximately 1,000–1,500 kg versus comparable hard-sided vans, improving payload capacity and fuel efficiency.

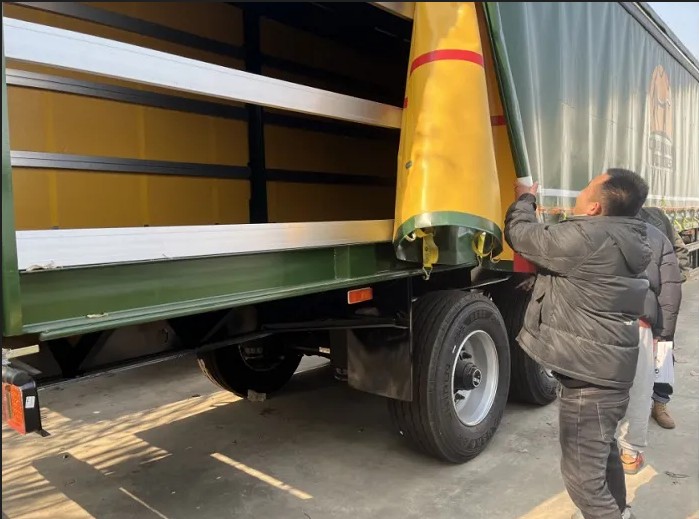

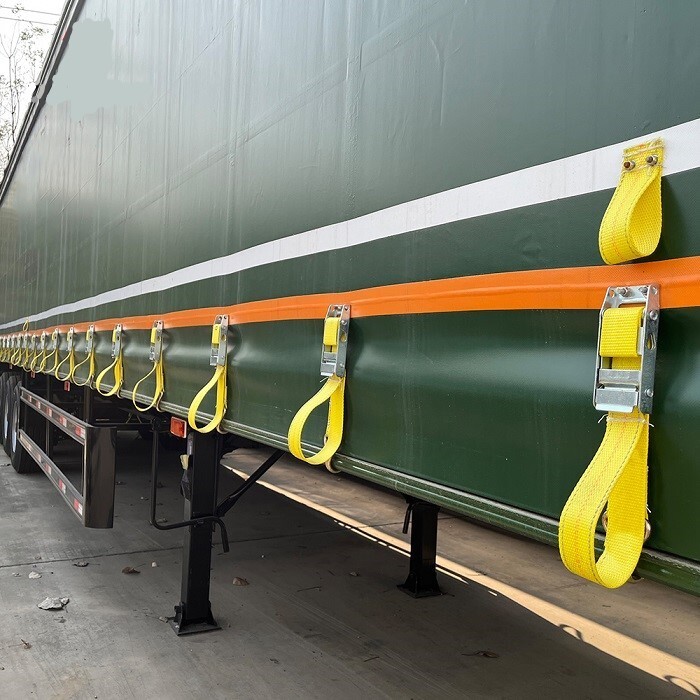

• Fast side access: Curtains open quickly for side loading. Forklifts can access an operating width of up to 26,000 mm across both sides, dramatically accelerating loading and unloading cycles compared to rear-only access.
• Crane loading capability: The curtain roof can be converted to a soft top and opened from above to allow safe, efficient crane loading for heavy or irregular loads.

• Branding and cleanliness: Flat curtain surfaces are ideal for high-quality printing, offering excellent advertising potential and easy cleaning for a professional fleet image.

Structural Design and Materials

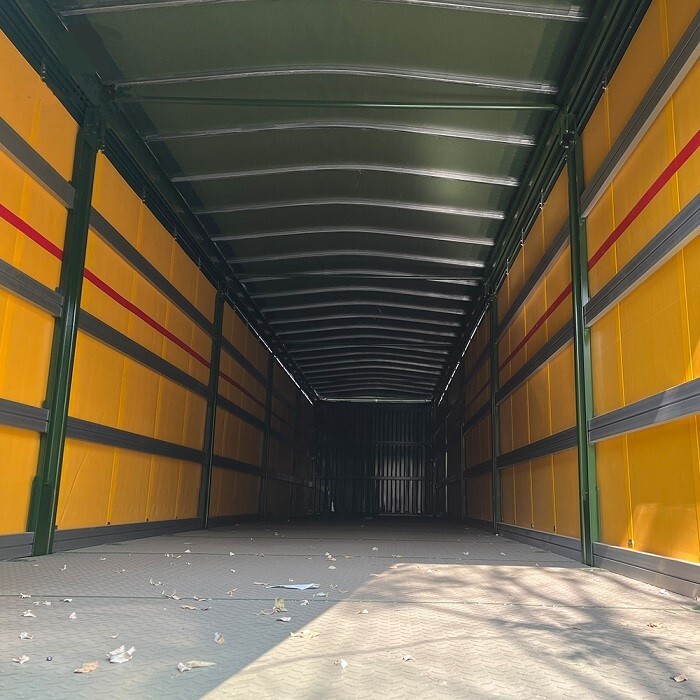

The trailer structure uses high tensile low alloy steel (Q345B) and an optimized integral bearing design that reduces the amount and weight of bottom girders while preserving strength. Key sections—the beam, king-pin plate and toolbox—are refined to minimize mass. Critical nodes such as columns, partition frames and upper platforms are reinforced to avoid stress concentration and cracking, validated by finite element analysis during development. Real-world operation over three years confirms the design integrity with no structural failures reported.

OEM Configuration & Customization

ZW Trailer supplies flexible OEM options to match operator requirements. Standard configuration includes Fuwa 3 x 13 ton axles, 1100R20-16 tires, 9.0 rims (12 pcs), 6 double-chamber brakes, LED lighting and a 24V electrical system with a 7-way receptacle. King-pin options of 2" or 3.5" are supported. Paint, marking and curtain graphics are customized to customer specifications to enhance fleet identity and on-road promotion.

Who Should Choose This Trailer

• Regional and long-haul freight carriers seeking better fuel economy and increased payload.
• Third-party logistics providers focused on rapid turnarounds and frequent stops.
• Retail and FMCG distributors who need efficient side-loading and prominent brand advertising space.
• Operators requiring crane-accessible top loading for oversized or heavy items.

Product Specifications
