Product Introduction

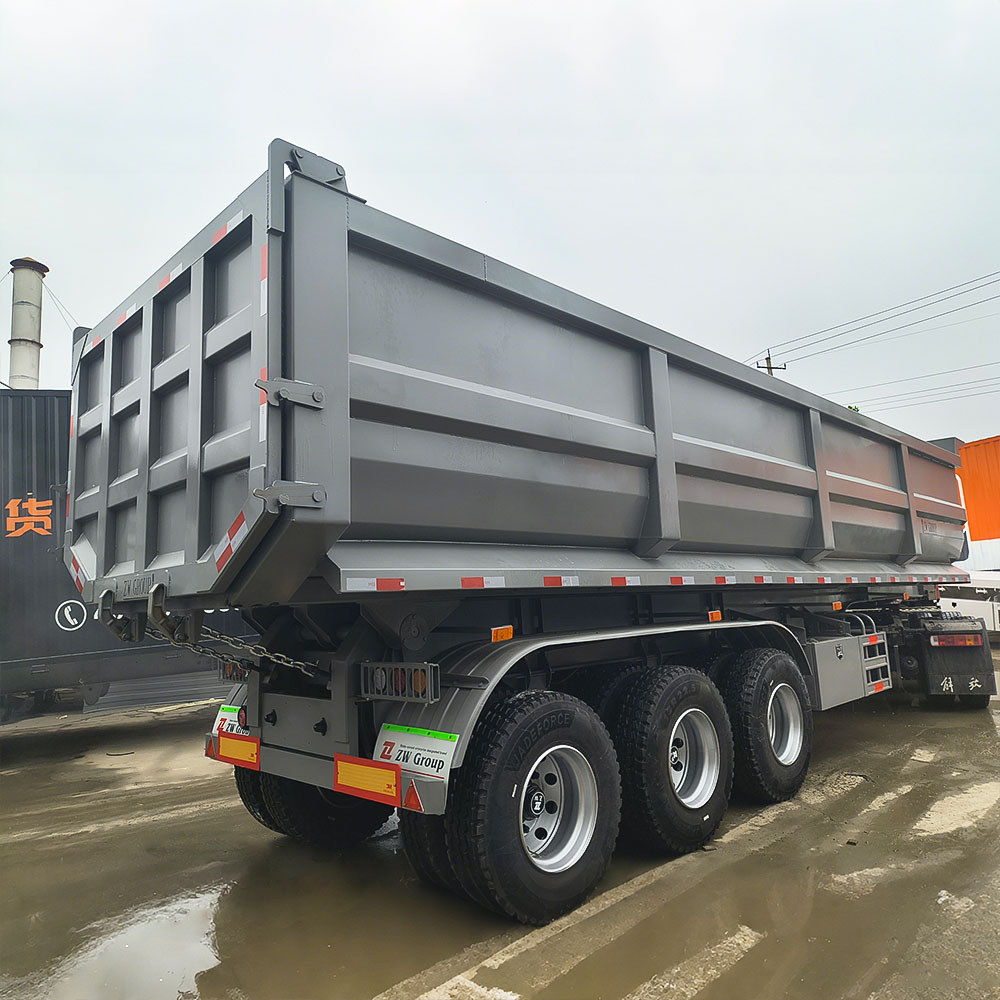

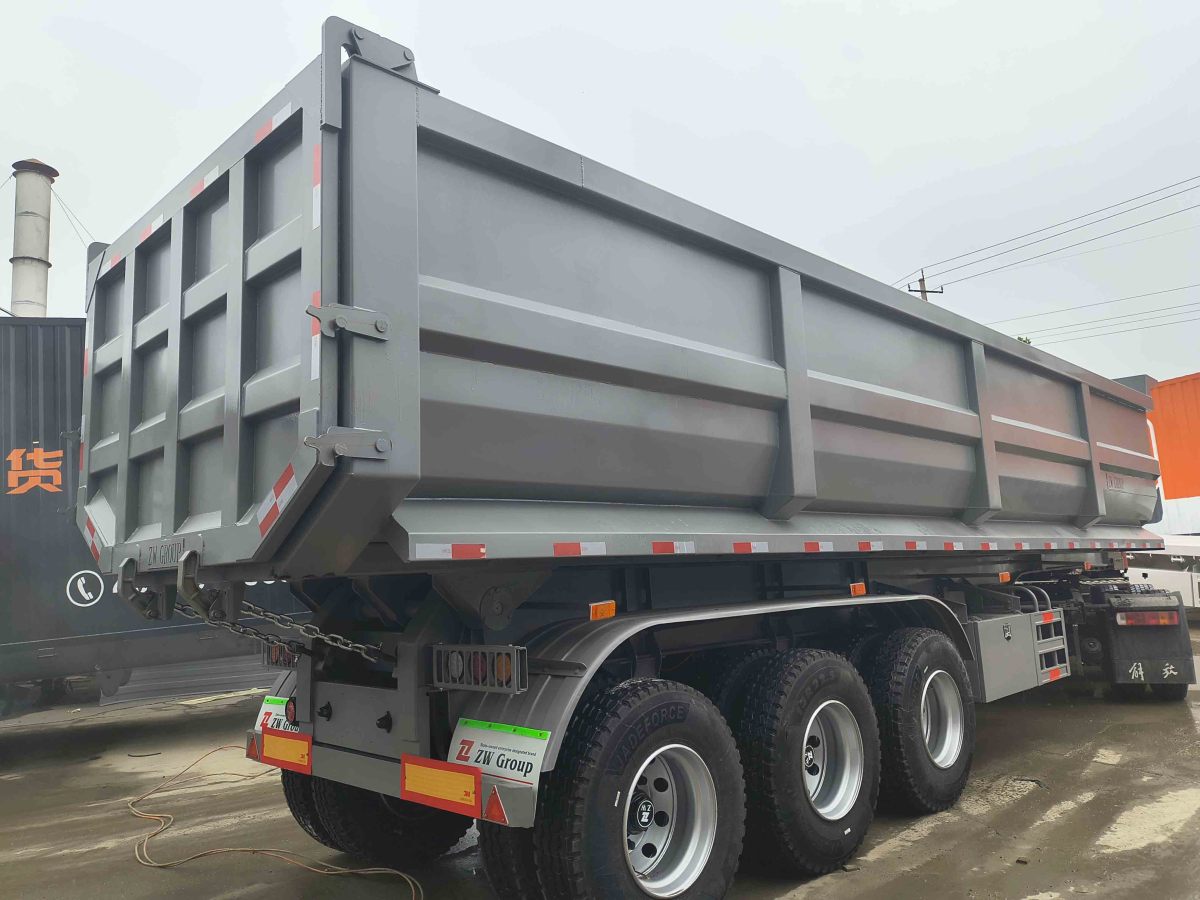

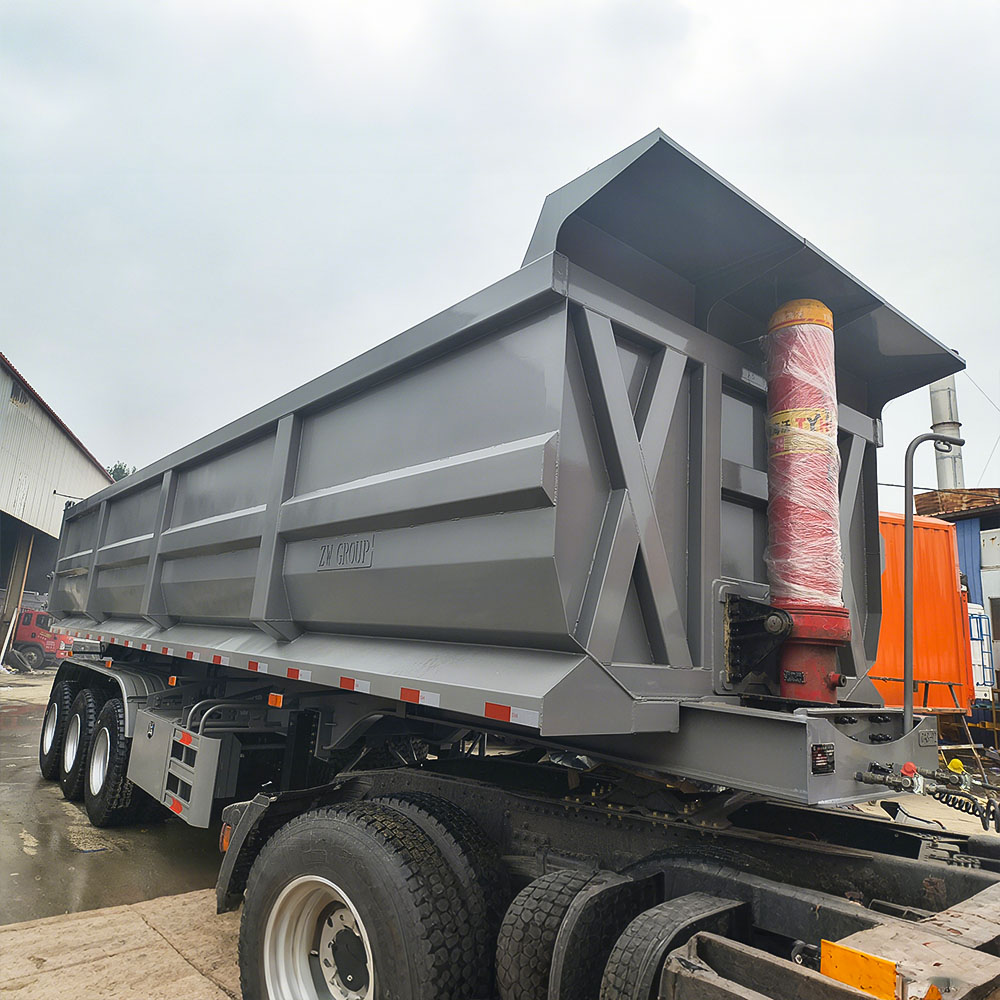

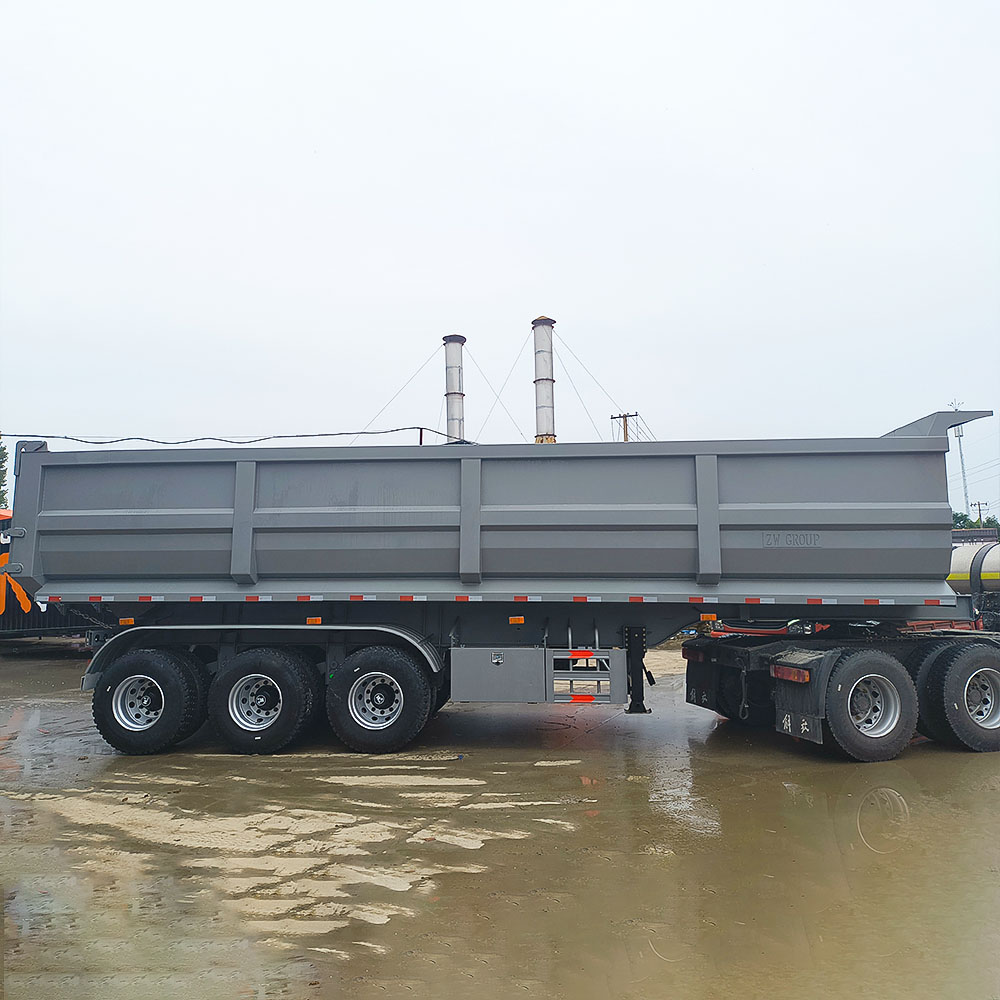

Built by ZW GROUP, the Heavy Duty Tri Axle Dump Trailer is a purpose-designed tipper semi trailer for heavy bulk materials such as sand, stones and gravel. With a 40 cubic meter box and a rated payload of 60 tonnes, this tri-axle dumper trailer balances high capacity with robust structural components to meet the demands of road construction, quarry operations and mining logistics—especially in regions where road surfaces can be challenging.

Key Features and Benefits

• High-capacity 40 m³ body: Optimized volume for sand and aggregates, allowing efficient loads per trip and lower transport cost per tonne.
• Square-body design for stones and gravel: The square shape increases usable volume and suits heavier materials such as crushed rock and gravel.
• Heavy structural frame: Q345B carbon steel frame with 14–16mm upper/lower plates and 8mm double middle plates; beam height 500mm to resist bending and torsion under load.
• Robust mechanical suspension: Thickened mechanical suspension and 10-layer 90mm leaf springs tuned for rough road conditions to improve durability and reduce maintenance.
• Reliable lifting system: Proven China-brand hydraulic lift sized for the 40 m³ box; optional reinforcement available for heavier duty cycles.
• High payload capability: Rated around 60T payload while maintaining a tare weight near 12T, delivering a favorable payload-to-weight ratio.
• Practical off-loading: Rear door can open automatically when the trailer is inclined to ensure clean and controlled discharge of sand or aggregates.

• Adaptable configuration: Option to choose U-shape body for cleaner off-loading of sand or square shape for maximum stone capacity; fuel/water tank additions are available for long hauls.

Design & Materials — Built to Last

Every structural member on this tri axle dump trailer is selected to withstand severe working conditions. The Q345B carbon steel frame and square-section main beams provide excellent resistance to fatigue and localized impacts common in quarry and construction environments. Plate thicknesses—8mm bottom and 6mm sides—are chosen to balance weight and wear resistance; combined with the heavy beam geometry (500mm height), the chassis delivers predictable stiffness and long service life.

Welding and Assembly

Frame welding follows certified procedures, with bolt-connected square beams where required to facilitate maintenance and replacement. The design allows either standard welded construction or special designs (as requested) to accommodate specific operational constraints.

Suspension, Axles and Road Performance

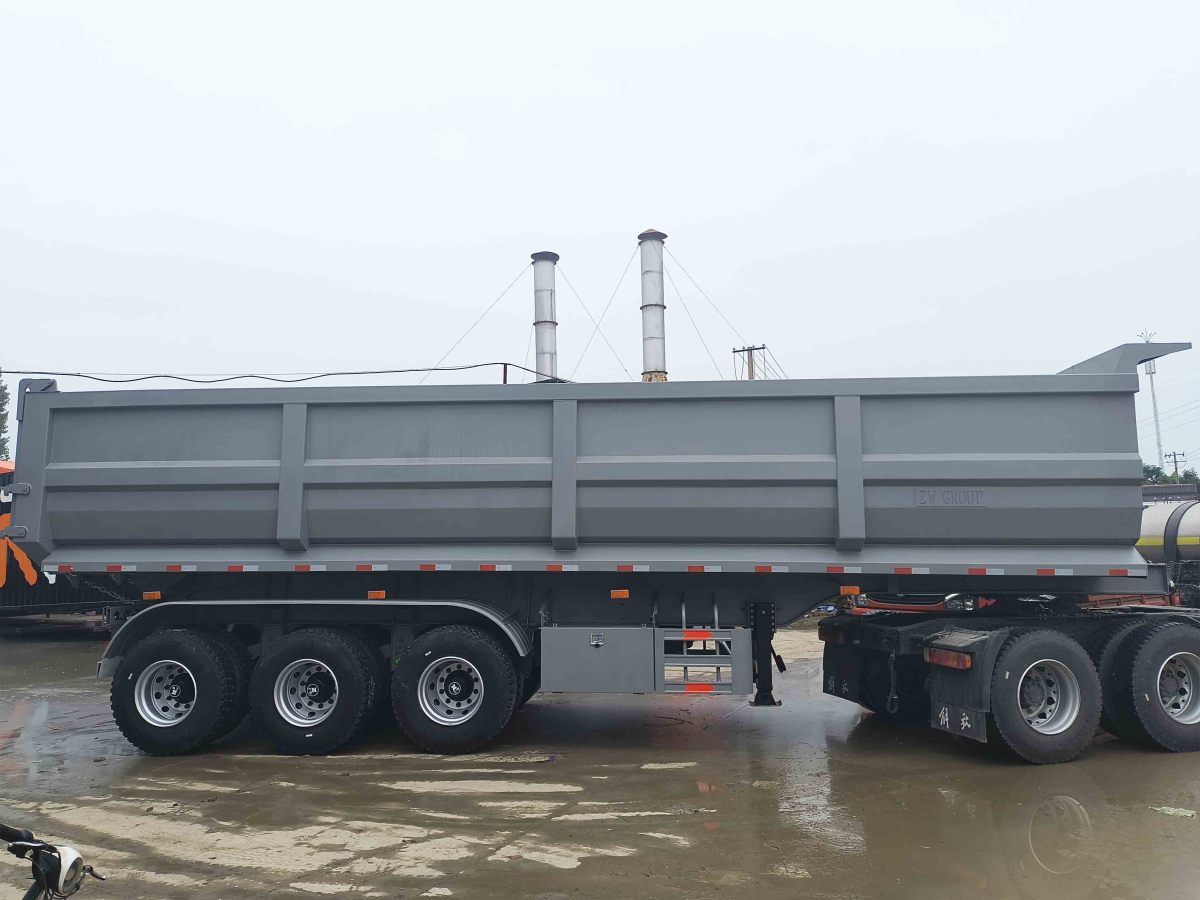

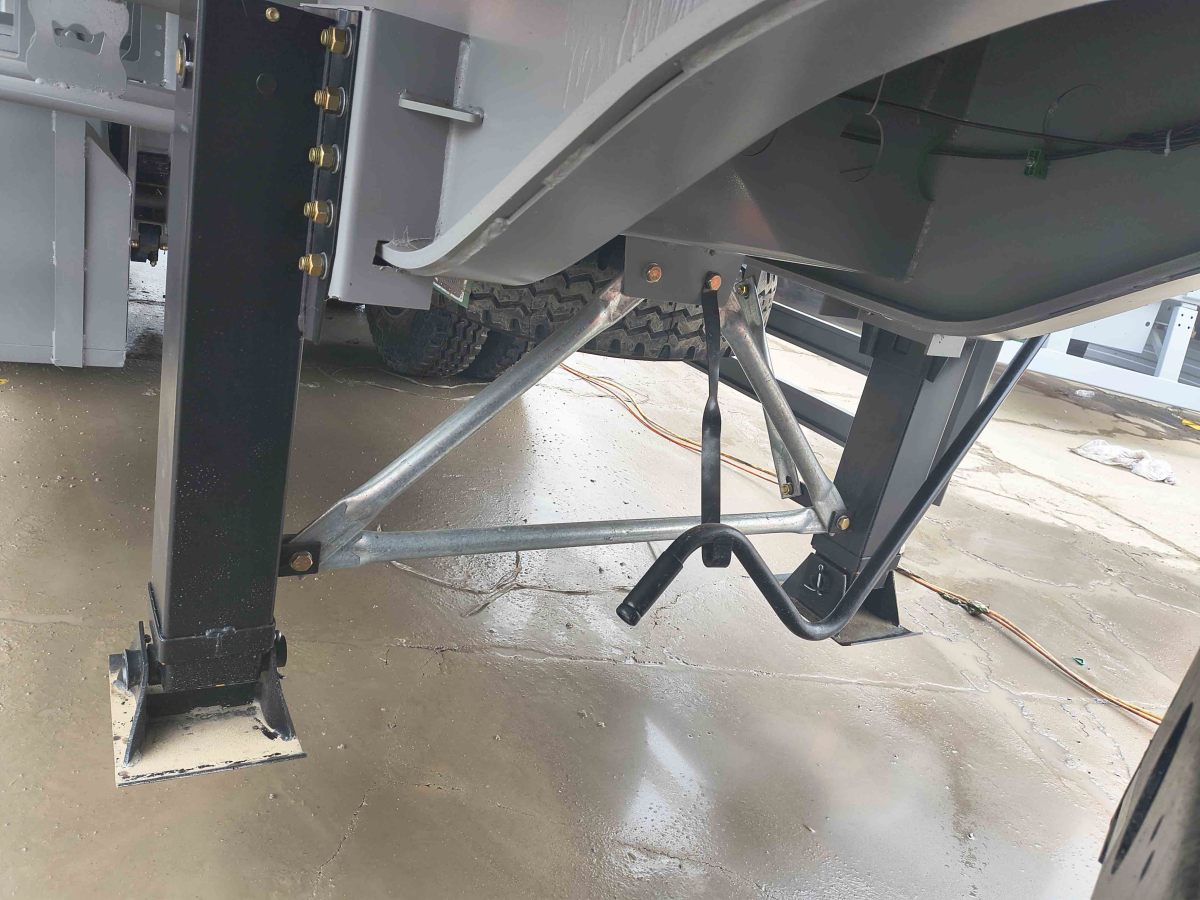

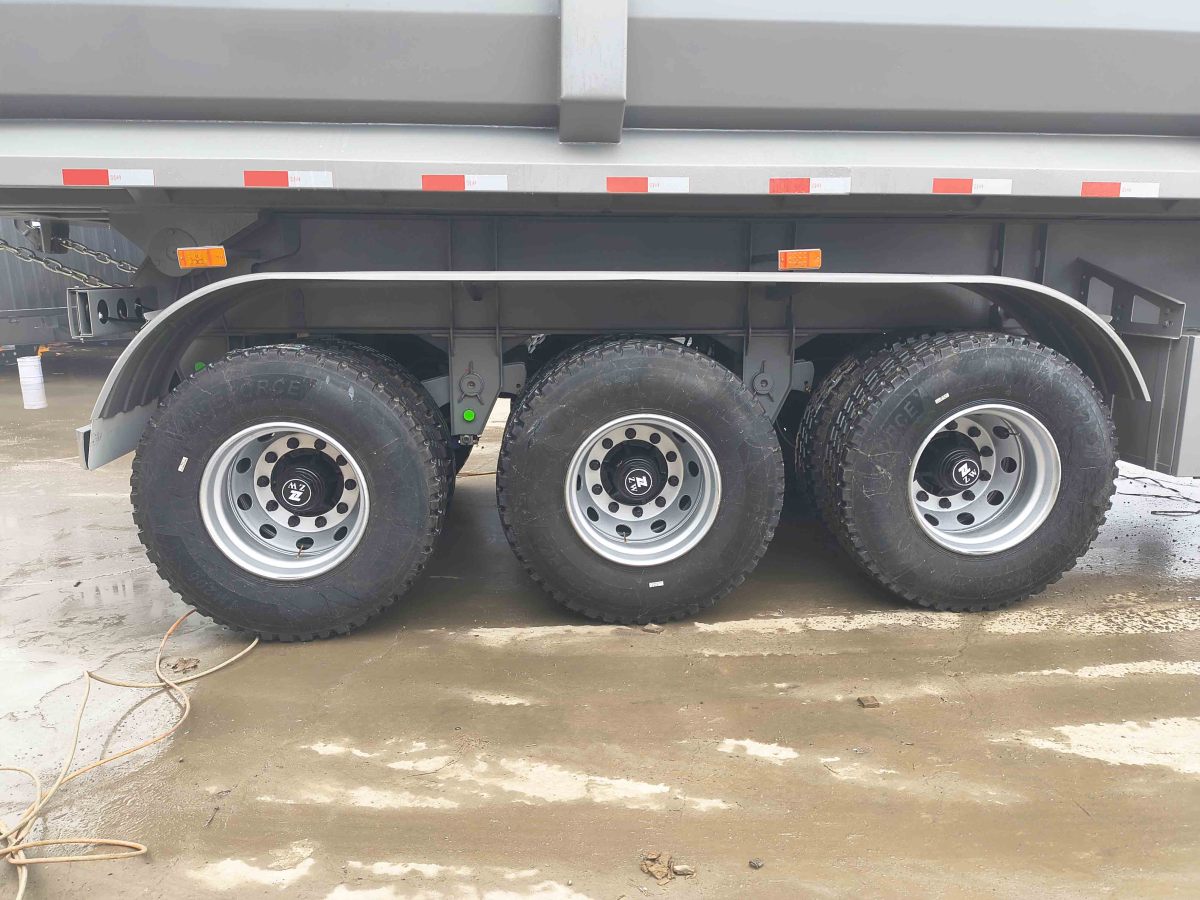

The tri-axle configuration distributes loads over three axles to improve stability and reduce ground pressure, which is particularly valuable on soft or rough surfaces. Mechanical suspension with thickened leaf springs (10 layers, 90mm width) reduces stress on the chassis during point loads from stones and uneven terrain. Landing gear rated at 28T and a two-speed mechanism provide reliable on-site support while uncoupled.

Loading and Off-loading Efficiency

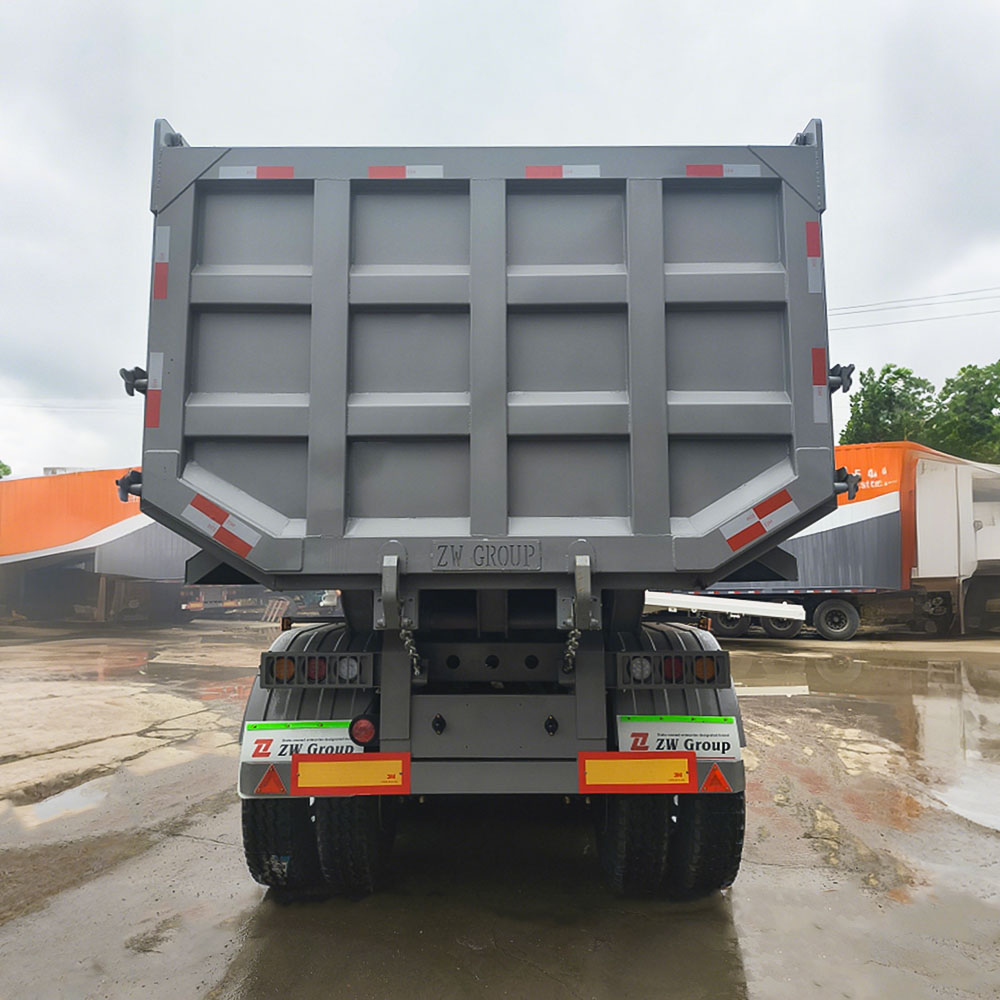

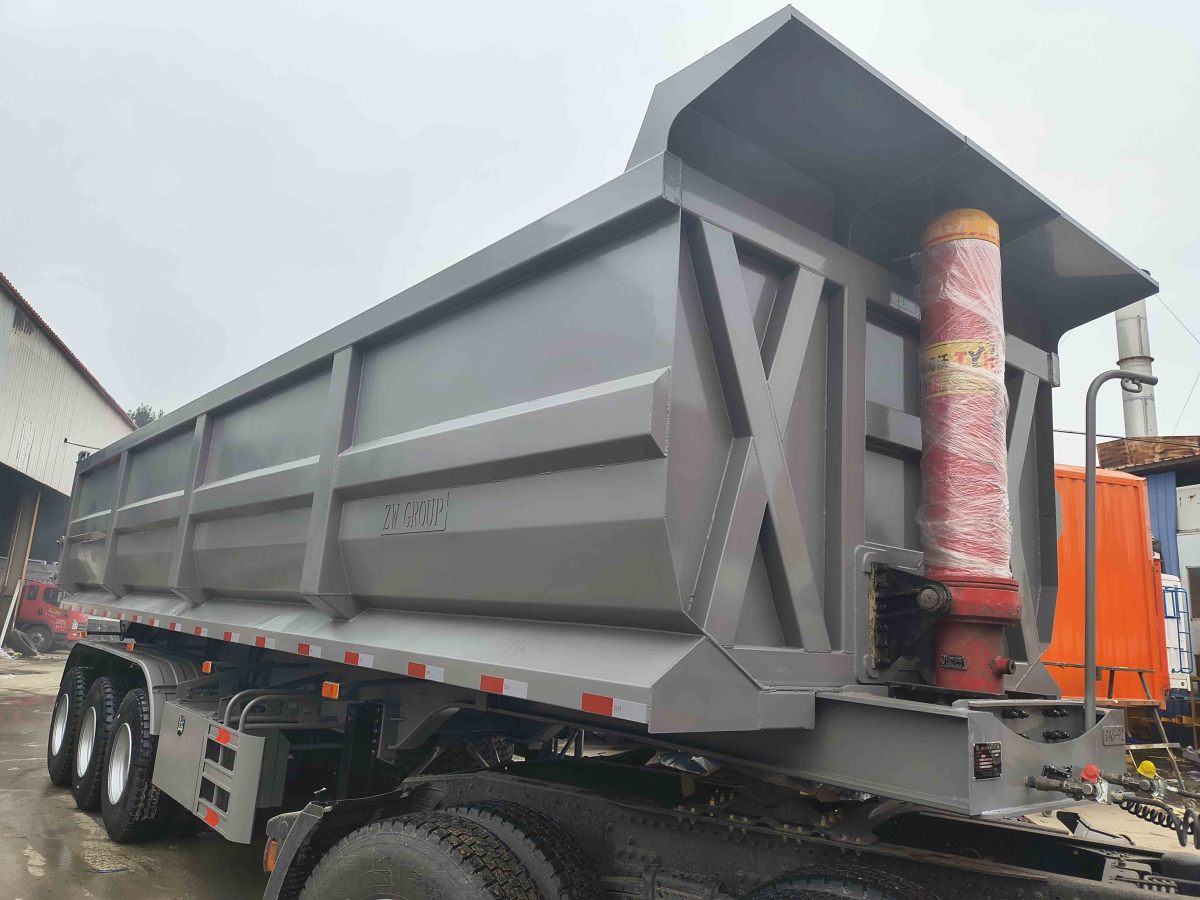

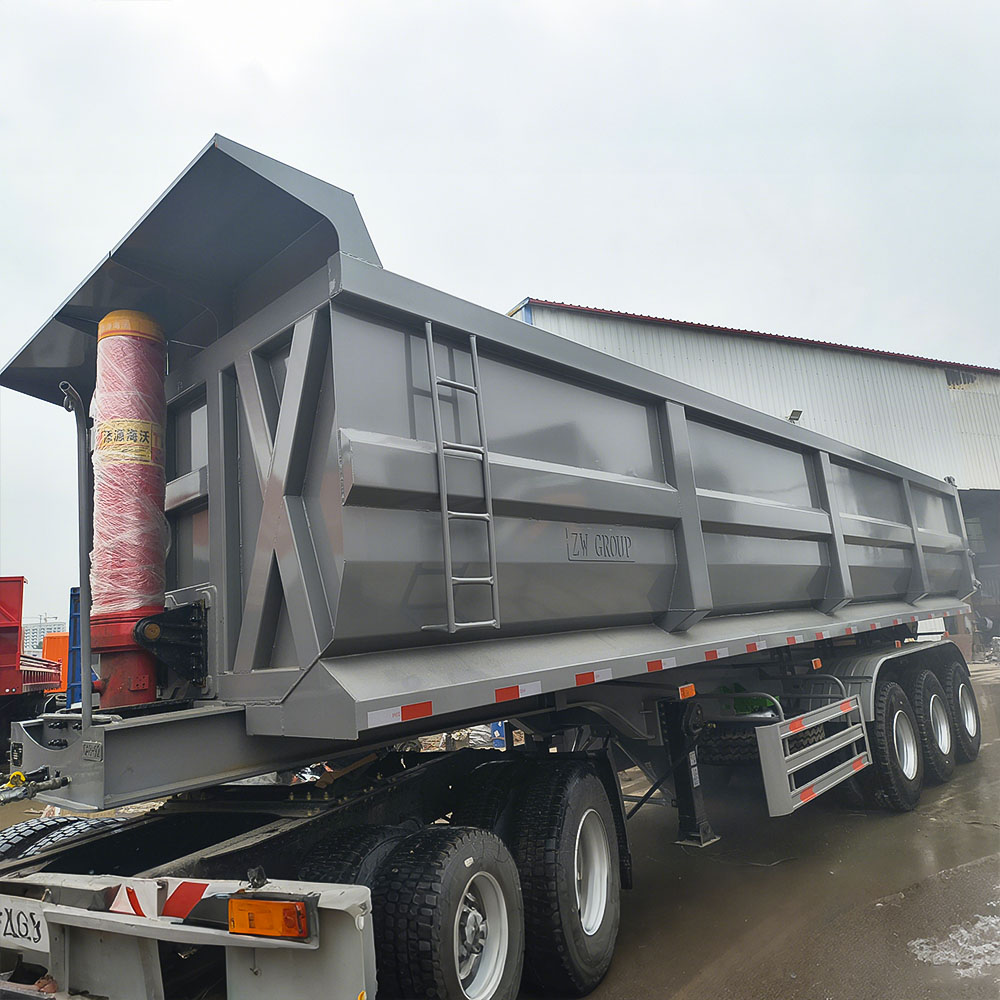

The tipper semi trailer is designed for rapid loading using standard loading equipment (excavators, wheel loaders). For unloading, the hydraulic lift provides stable and controlled tipping. The square shape enhances volume for coarse materials, while the option of a U-shape body (available from ZW GROUP) is optimal for sand because it reduces material adhesion and results in a cleaner discharge. When the trailer is tilted, the rear door mechanism opens automatically to facilitate smooth release of material, minimizing the need for manual intervention and site downtime.

Payload, Tare Weight and Practical Capacity

Rated to carry up to 60 tonnes with an approximate tare weight of 12 tonnes, the trailer offers a high net payload. This configuration is particularly cost-effective where heavier, dense materials (e.g., crushed stone) are common. The 40 cubic meter volume also suits less dense materials like sand, providing flexibility across multiple job types.

Customization Options

• Body shape: square (standard) or U-shape (for sand).
• Payload/brace reinforcement: optional strengthened lifting system and reinforced beam design for operations exceeding standard payload cycles.
• Auxiliary tanks: fuel tank or water tank can be added beneath the trailer for long-distance runs or on-site utility.
• King pin options: standard bolt-in 2.00 inch or heavy-duty 3.5 inch.

• Surface treatment and paint: anti-corrosion coatings and bespoke paint schemes for harsh climates or fleet branding.

Maintenance, Serviceability and Total Cost of Ownership

The Heavy Duty Tri Axle Dump Trailer is engineered for straightforward maintenance. Mechanical suspension and rugged leaf springs are easier to service and more tolerant of debris than some air or complex suspensions. The bolt-connected beam arrangement simplifies replacement of damaged sections. By focusing on heavy-gauge steel in critical areas and reliable hydraulic systems, the trailer reduces unscheduled downtime and helps control lifecycle costs. Routine checks should emphasize hinge and seal integrity on the rear door, hydraulic lines and fasteners on the main beams.

Safety and Compliance Considerations

Designed to be spec-compliant for heavy transport, the trailer includes industry-standard safety features such as secure rear door locking, stable landing gear, and properly rated king pin options. Operators should verify local regulations for axle loads and dimension limits; the trailer’s specification allows fleet engineers to balance payload and weight distribution to remain legal and safe on public roads.

Typical Use Cases and Target Users

This tri axle dump trailer is particularly suited to:

1. Construction companies transporting sand, crushed stone and bulk aggregate between quarries and job sites.
2. Mining and quarry operations moving raw materials to processing plants or stockpiles.
3. Roadworks contractors needing durable, high-volume tipper trailers for earthworks and paving projects.

4. Freight operators serving regions with rough road networks—especially in growing markets such as Africa where tipper semi trailers are increasingly popular.

Why Choose This Tri Axle Dump Trailer?

The Heavy Duty Tri Axle Dump Trailer represents a practical balance of volume, payload and durability. Its heavy-duty frame and suspension are optimized for rough roads, and its configurable body shapes let operators choose the best solution for either sand or heavy stone. For fleet managers seeking dependable tipper performance with predictable maintenance and long service life, this ZW GROUP model is a compelling option.

Operational Tips and Best Practices

• Load distribution: ensure even loading across the box to prevent overloading a single axle and to extend suspension life.
• Regular greasing: maintain pivot points, hinges and the king pin interface to reduce wear under heavy duty cycles.
• Hydraulic checks: inspect hoses, seals and cylinders regularly; replace per service intervals to avoid unplanned downtime.
• Body protection: in abrasive environments, consider additional wear plates for the bottom plate or sacrificial liners to reduce repair frequency.

• Choose the right body shape: for sandy cargoes, a U-shape body reduces material sticking and speeds unloading; for rock and gravel, the square body maximizes capacity.

Ordering Guidance and Available Support

ZW GROUP offers flexible configurations to align with fleet needs. Standard delivery includes the 40 cubic meter square box, 3-axle chassis, mechanical suspension and China-brand lifting system. If you require a different capacity, reinforced lifting packages, or integration of fuel/water tanks, discuss your operational profile with the sales engineer so the trailer can be optimally specified. Spare parts availability and after-sales support options can be arranged to match regional service networks.

Environmental and Operational Considerations

Durable construction reduces the need for early replacement, supporting sustainability by lowering material turnover. Efficient loading and a high payload-per-trip ratio reduce the number of trips required, cutting fuel consumption and emissions per tonne moved. For long-distance operations, the optional underframe fuel tank is a practical addition that reduces deadhead time for resupply.

Case Example: Road Construction Fleet

A mid-sized road contractor operating in mixed pavement conditions replaced older single-axle tippers with the 40 m³ tri axle dump trailer. Benefits realized included fewer trips per project due to larger volume, lower per-tonne transport cost and reduced maintenance intervals because the stronger frame better tolerated the abrasive rock loads. The mechanical suspension proved robust in off-road sections, minimizing axle and wheel-end failures.

Frequently Asked Questions

Q: Can the trailer carry more than 50 tonnes?

A: The standard design is rated for a 60T payload. If operational needs consistently demand higher loads, ZW GROUP can evaluate a strengthened lifting system and reinforced beam package to increase lifting capacity. Any modification must comply with local axle-load regulations and be validated by engineering assessment.

Q: Is the trailer suitable for long-distance hauling?

A: Yes—especially when fitted with optional underframe fuel or water tanks for remote operations. The structural design supports highway speeds when properly loaded and serviced. For long runs, plan regular inspections of suspension, tires and hydraulic systems.

Q: Which body shape should I choose?

A: Choose U-shape for primarily sandy materials (cleaner unloading) and square shape for maximum volume with stones and gravel. The standard configuration supplied here is square shape optimized for heavy aggregate transport.

Final Notes & Call to Action

The Heavy Duty Tri Axle Dump Trailer from ZW GROUP is engineered for operators who need a rugged, high-capacity tipper semi trailer capable of handling arduous work in construction, quarrying and mining. If you require a trailer with specific adaptations—different capacity, reinforced lifting package, or integrated tanks—our team can design to your transport demand. Contact our sales engineers to request a detailed quotation, technical drawings or to discuss fleet compatibility and lead times.

For inquiries, please provide your typical cargo type, average payload per trip and operating terrain so we can recommend the optimal configuration and any reinforcement options. We welcome project-based consultations and can support specification for single units through full fleets.

Product Specifications

Below are the verified technical specifications for the 40 cubic meter dumper trailer as supplied. All data reflects the trailer configuration currently offered and must be used for planning and procurement decisions.
