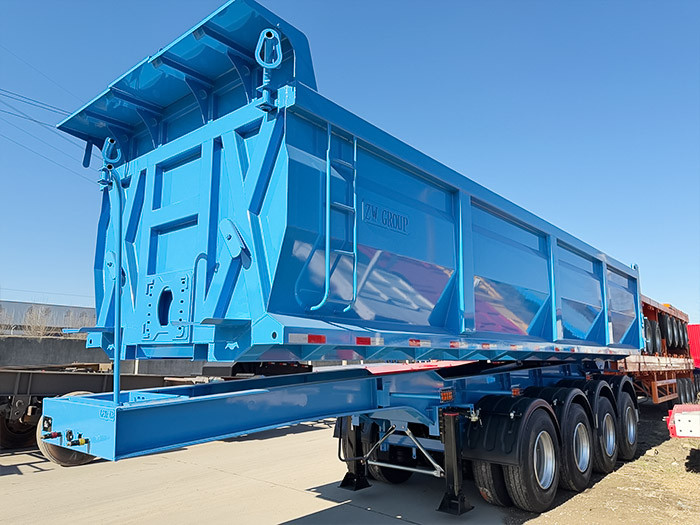

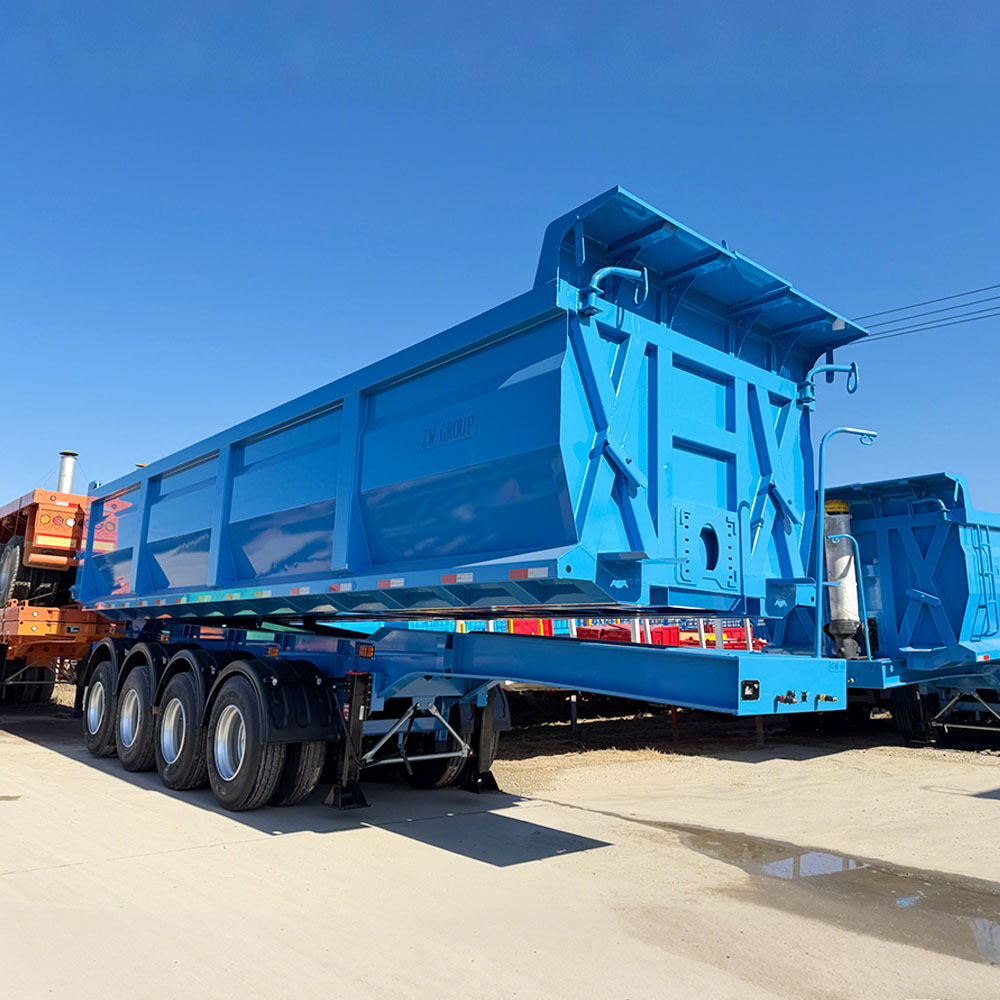

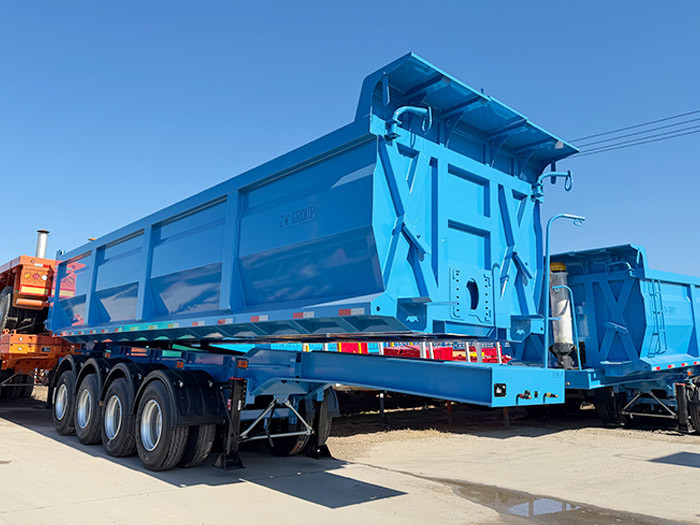

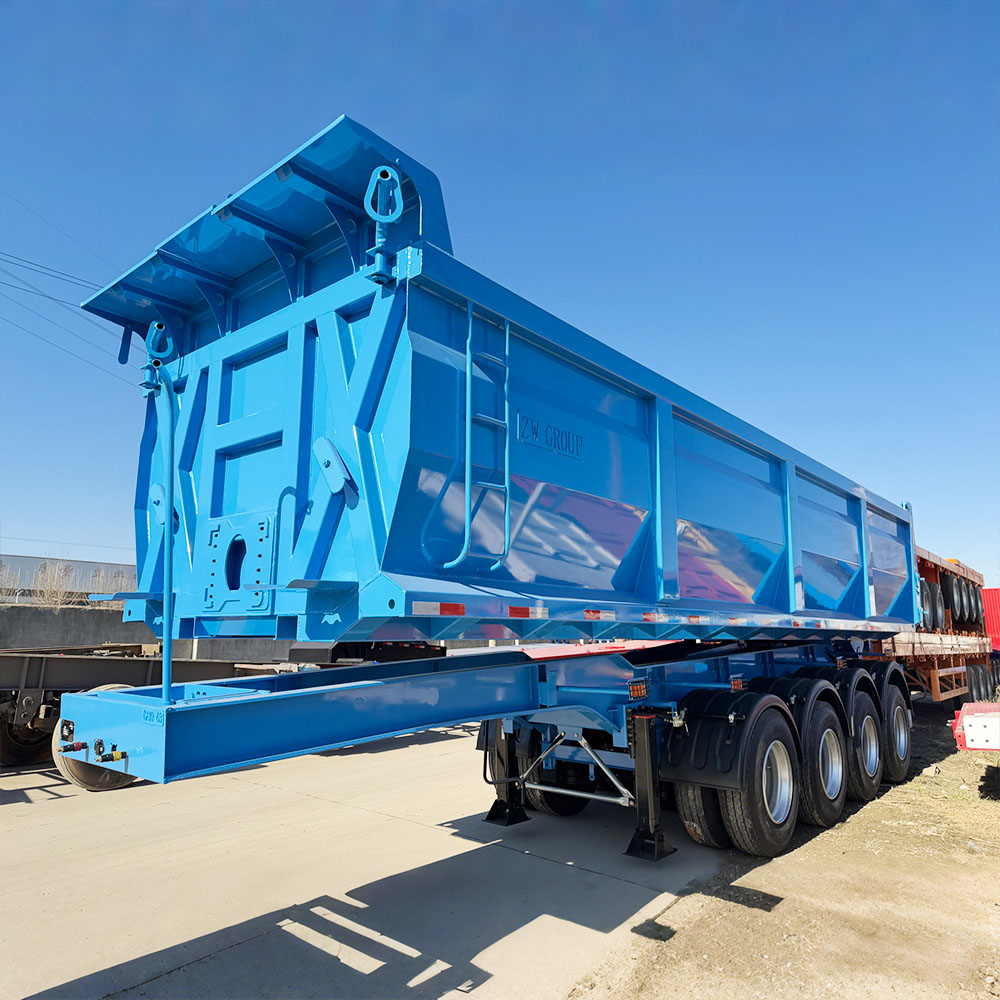

When transporting 80 tons of material, the design of the cargo box is not just about aesthetics; it is about physics. The U-shaped rear-tipping dump semi-trailer body has become the global standard for heavy-duty transport, replacing the traditional rectangular (square) box in high-efficiency operations.

The primary advantage of the U-box design is the elimination of dead corners. In a square box, sticky materials such as wet sand, clay, or wet ores tend to accumulate in the corners of the floor and side walls. Over time, this "carry-back" reduces the effective payload of the next trip and requires dangerous manual cleaning. The curved geometry of our U-box ensures that materials slide to the center and discharge smoothly, achieving a 100% clean unload every time.

Furthermore, the U-shape structure offers superior rigidity. The curved steel acts as a natural arch, distributing the stress of the load more evenly across the chassis than a flat-sided box. This allows us to use high tensile steel that is lighter but stronger, reducing the trailer's tare weight to just 11T without compromising its 80-ton capability. Finally, the U-shape naturally lowers the center of gravity (CoG). A lower CoG is critical for safety, significantly reducing the risk of rollover when the box is raised on uneven mining terrain.

High Tensile Carbon Steel: Built for 80-Ton Impacts

The backbone of any heavy-duty dump semi trailer is its chassis. For a trailer rated at 80 tons (35CBM), standard steel is insufficient. We utilize premium High Tensile Carbon Steel for the entire construction, ensuring the trailer can withstand the high-impact loading of large rocks and the torsional stress of off-road driving.

The Main Beam Configuration

The main beam is engineered to prevent "hogging" or "sagging" under load. Our specification features:

• Beam Height: 500 mm – providing a deep vertical profile for maximum stiffness.
• Upper Plate: 6 mm – offering compression resistance.
• Middle Plate (Web): 10 mm – providing vertical shear strength.
• Bottom Plate: 18 mm – This is the critical component. The bottom plate takes the majority of the tension when the trailer is loaded. By thickening this to 18mm, we ensure the chassis remains rigid even when carrying high-density ore.

Cargo Body Thickness

The U-Box itself is armored against abrasion and puncture.

• Floor (6mm): The floor bears the brunt of the impact during loading. A 6mm thickness ensures that dropping large stones from an excavator won't puncture the bed.
• Side Walls (4mm): While slightly thinner to save weight, the curved nature of the 4mm sides provides immense lateral strength.

• Front and Rear (5mm): Reinforced to withstand the shifting load during braking and acceleration.

4-Axle Configuration: The Hybrid Suspension Advantage

To legally and safely carry 80 tons, load distribution is key. This trailer features a sophisticated 4-axle system using reliable 13-ton ZY brand axles. However, the innovation lies in the suspension arrangement.

The Lifting Axle Technology

The first axle is equipped with a pneumatic lifting system. Why is this important?

1. Fuel Economy: A dump trailer spends 50% of its life empty (the return trip). Running on 4 axles when empty creates unnecessary rolling resistance. By lifting the first axle, you reduce the contact patch with the road, significantly lowering drag and saving fuel.

2. Tire Preservation: Tires are a major operational cost. Lifting the first axle prevents wear and tear on those tires during empty runs. It also eliminates the "scrubbing" effect on the first axle when turning tight corners, extending the life of the tire tread by up to 30%.

3. Traction Assist: In slippery conditions (mud or snow), lifting the first axle transfers more weight to the drive wheels of the tractor unit and the remaining trailer axles, momentarily increasing traction.

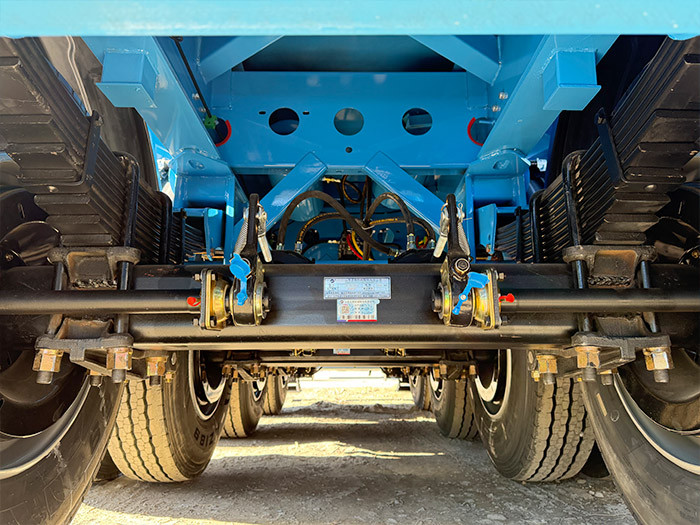

Leaf Spring Stability

While the first axle uses air suspension for lifting, the rear three axles utilize a heavy-duty mechanical leaf spring suspension. We use TAIYUE Brand leaf springs, consisting of 10 pieces of thickened leaves (10x90x16mm). This mechanical setup is preferred for the rear axles because it offers superior lateral stability when tipping. Unlike air bags which can shift, leaf springs provide a rigid platform that keeps the trailer level as the 80-ton load is raised into the air.

Hydraulics and Braking: Critical Safety Systems

Power and control are nothing without safety. The Brand New 80Tons (35CBM) Semi Dump Trailer is equipped with top-tier ancillary systems.

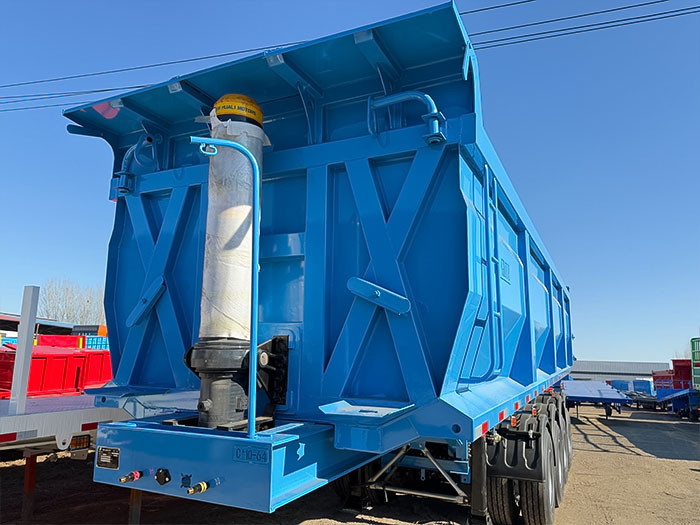

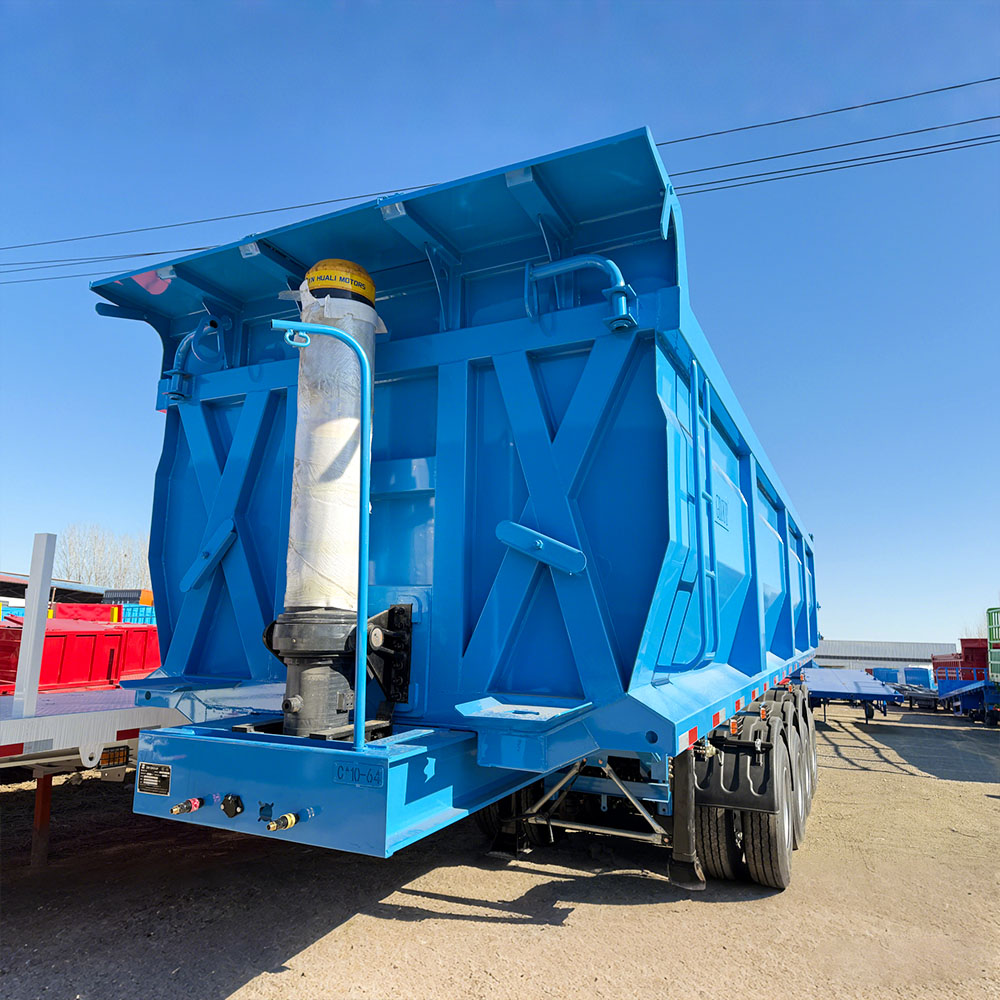

Hydraulic Tipping System

The heart of a tipper is its hydraulic cylinder. We utilize a complete set of industrial-grade hydraulic cylinders designed for standard tipping. The system is calibrated for the 35CBM capacity, ensuring a smooth ascent and descent. The cylinders are chrome-plated to resist dust and corrosion, common in mining environments. The geometric design of the lifting mechanism ensures optimal leverage, reducing strain on the hydraulic pump.

WABCO Braking Performance

Stopping 80 tons plus the weight of the tractor requires immense force. We rely on the WABCO RE6 relay valve system. WABCO is the global leader in commercial vehicle braking control. The RE6 valve ensures that air pressure is delivered to the brake chambers instantly when the pedal is pressed, minimizing "brake lag."

This rapid response distance can mean the difference between a safe stop and an accident. Coupled with the 13-ton axles and high-friction brake linings, the trailer offers confident stopping power on steep mining gradients.

Technical Specifications Data Sheet

Below is the comprehensive technical breakdown of the 4-axle U-shaped rear-tipping dump semi-trailer.

Components: The "Sum of Parts" Philosophy

A trailer is more than just steel; it is a collection of moving parts. We ensure that every interface point is robust.

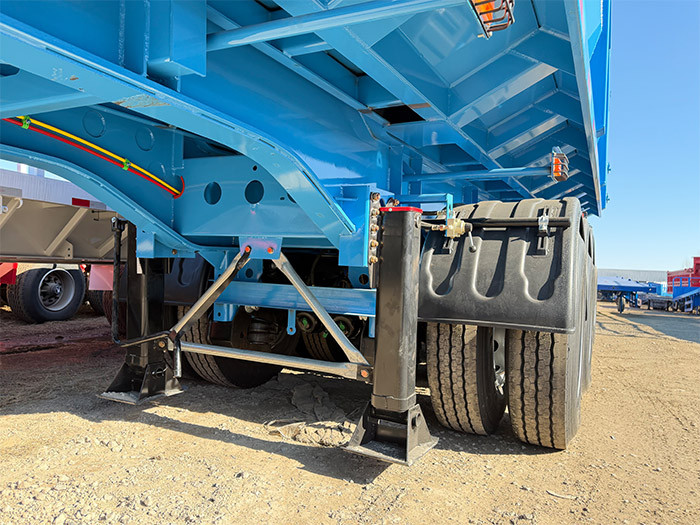

JOST Landing Gear & King Pin

We utilize JOST Brand 28T landing gear. Known as the industry standard, these landing legs are capable of supporting the fully loaded trailer when disconnected from the truck. They feature a two-speed gearbox, allowing for rapid descent when empty and high-torque lifting when loaded. Similarly, the JOST King Pin ensures a secure, wear-resistant connection to the fifth wheel.

Tires and Rims

The trailer is shod with 16 pieces of 12R22.5 tires. The 12R22.5 size is the gold standard for heavy-duty transport, offering a perfect balance of load capacity and heat dissipation. Being tubeless, these tires run cooler than tube-type tires, reducing the risk of blowouts on long highway runs. They are mounted on reinforced 9.0 steel rims designed to handle lateral forces.

Manufacturing Excellence: Sandblasting and Painting

The longevity of your investment depends on corrosion resistance. We do not simply paint over raw steel.

Step 1: Sandblasting. Every chassis undergoes a full sandblasting treatment. This high-pressure process removes all mill scale, rust, and oils from the steel. It creates a microscopic texture on the steel surface.

Step 2: Priming. Because of the sandblasting, the anti-rust primer bonds molecularly with the steel, creating an impermeable barrier against moisture.

Step 3: Polyurethane Topcoat. We finish the trailer with a high-grade polyurethane paint in your requested color. This paint is resistant to UV radiation, stone chips, and chemical corrosion, keeping your fleet looking professional for years.

Frequently Asked Questions (FAQ)

1. What is the advantage of the lifting axle on a 4-axle trailer?

The lifting axle (first axle) allows the trailer to operate as a 3-axle unit when empty. This reduces tire wear on the lifted axle to zero and reduces rolling resistance, saving fuel. When loaded, the axle drops to distribute the 80-ton weight legally and safely.

2. Can this trailer handle large rocks for mining?

Yes. The floor is made of 6mm High Tensile Carbon Steel, specifically designed to resist impact from large rocks dropped by excavators. The U-shape also deflects impact better than a flat floor.

3. Is the King Pin compatible with my truck?

The trailer comes with a JOST brand King Pin. We can provide either a 50# (2 inch) or 90# (3.5 inch) pin depending on your truck's fifth wheel. It is bolted on, so it can be exchanged easily.

4. How do I maintain the hydraulic system?

Regularly check the hydraulic fluid levels and inspect hoses for leaks. Ensure the hydraulic cylinder is greased according to the maintenance schedule. We use high-quality cylinders that require minimal maintenance under normal conditions.

5. What is the delivery time for a Brand New 80Tons Semi Dump Trailer?

Manufacturing typically takes 15-20 days depending on the customization required (color, specific reinforcements). Shipping times vary based on your destination port.
