Premium 48500L Mirror-Finish Aluminum Tank Semi-Trailer

In the highly competitive fuel logistics industry, maximizing payload while ensuring absolute safety is paramount. The 48500L aluminum tank semi-trailer engineered by ZW Vehicle Group is the ultimate solution for transporting hazardous flammable liquids like diesel and gasoline. By utilizing premium 5182 aluminum alloy, we significantly reduce the tare weight of the vehicle, directly translating to increased cargo volume per haul and superior return on investment. Whether navigating the demanding terrain of resource-rich developing regions or adhering strictly to the stringent payload regulations of modern highways, this mirror-finish aluminum fuel tanker delivers flawless operational efficiency.

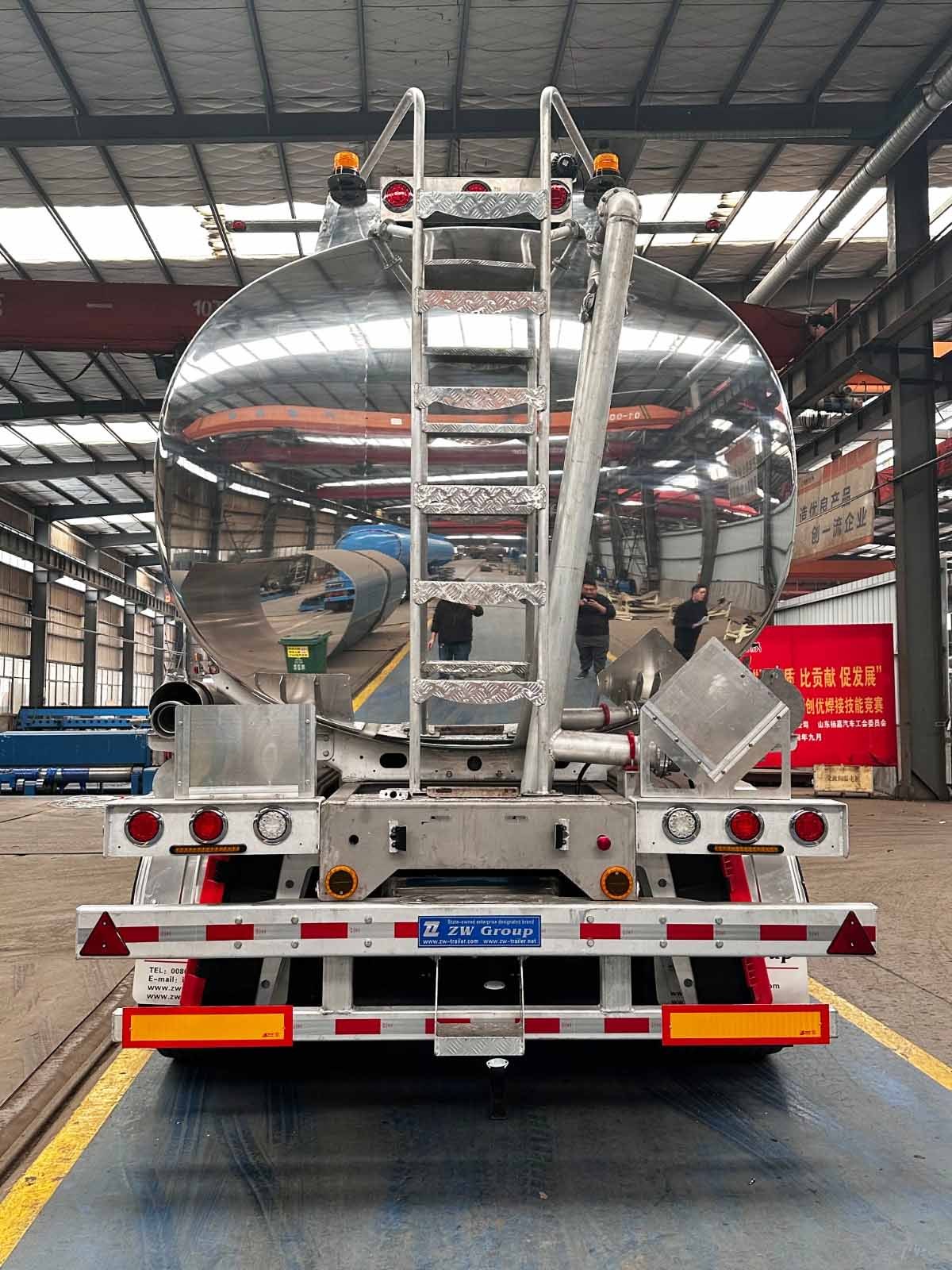

48500L Aluminum Tank Semi-Trailer transporting diesel

6 compartment layout of the aluminum alloy petrol tanker trailer

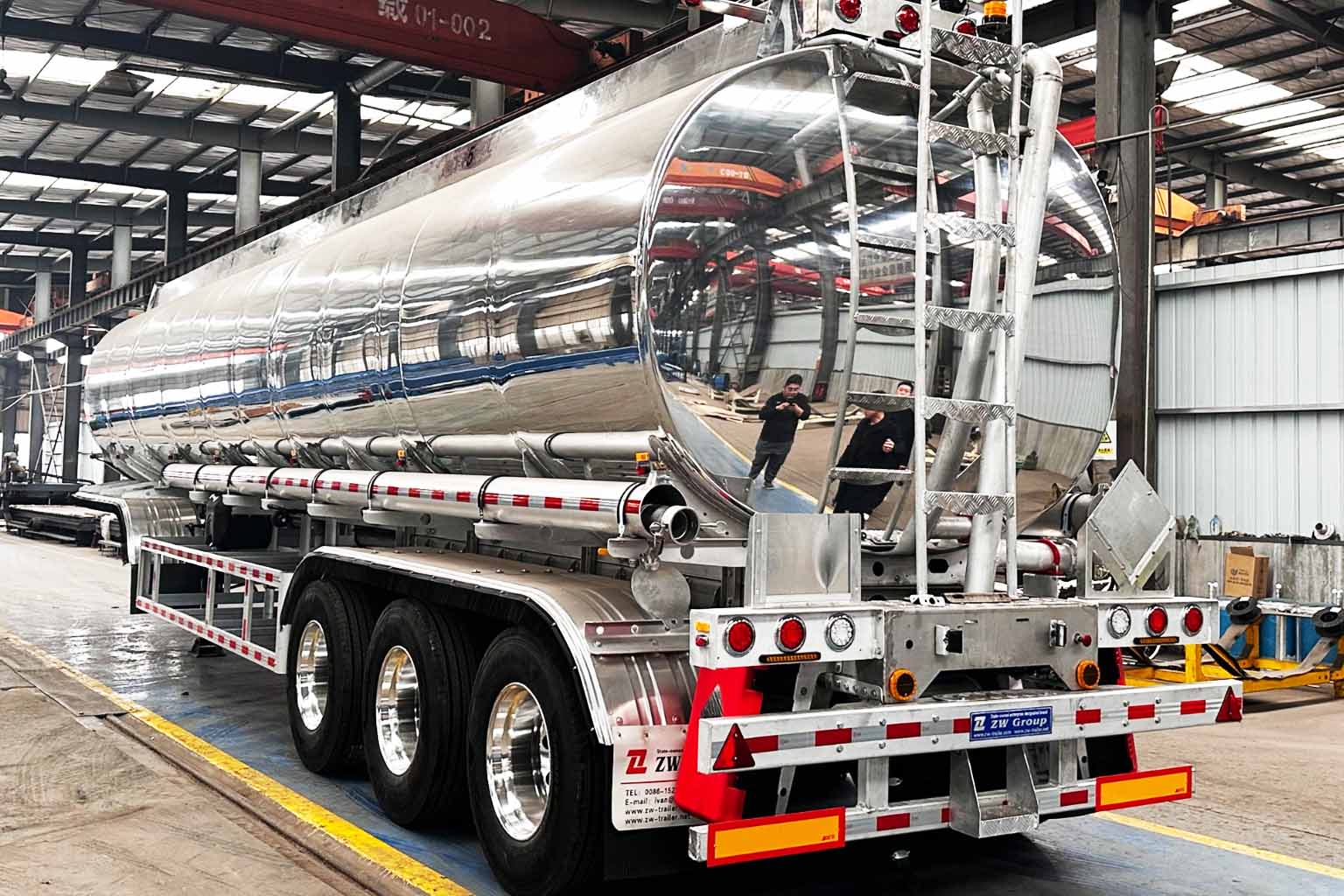

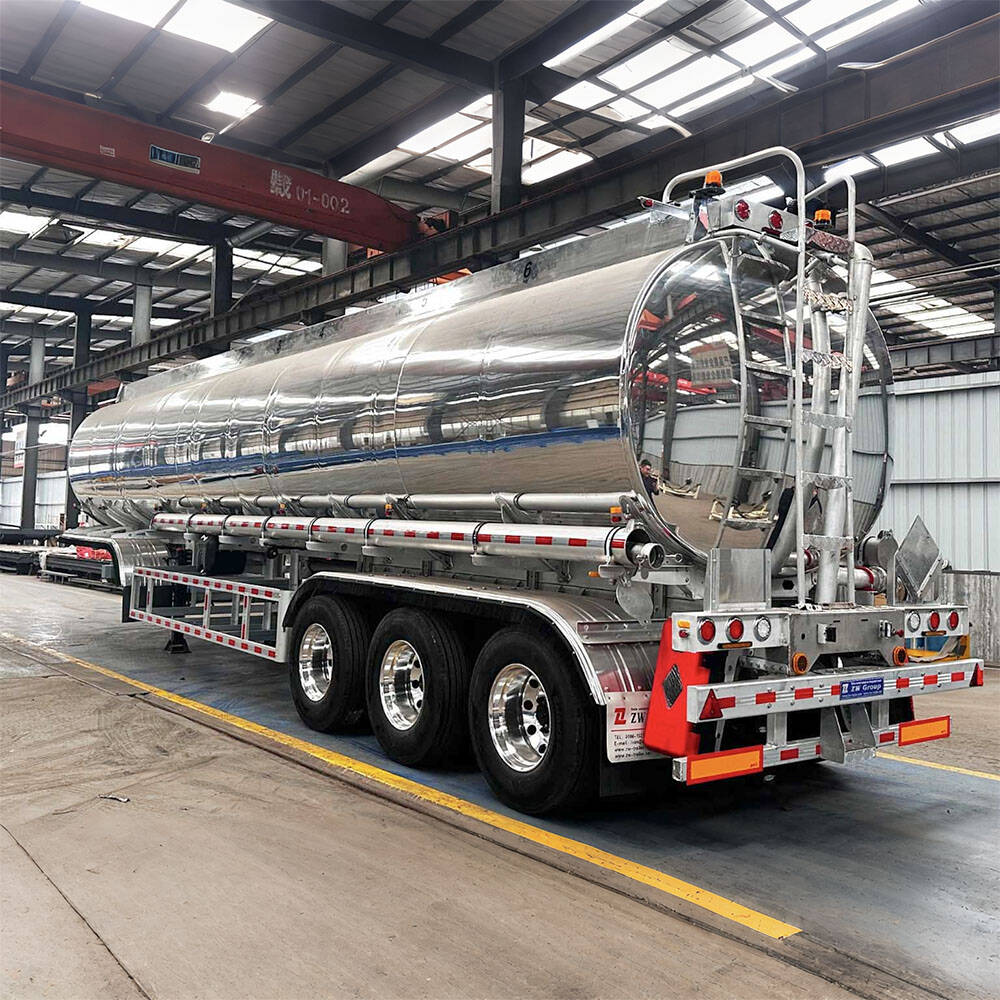

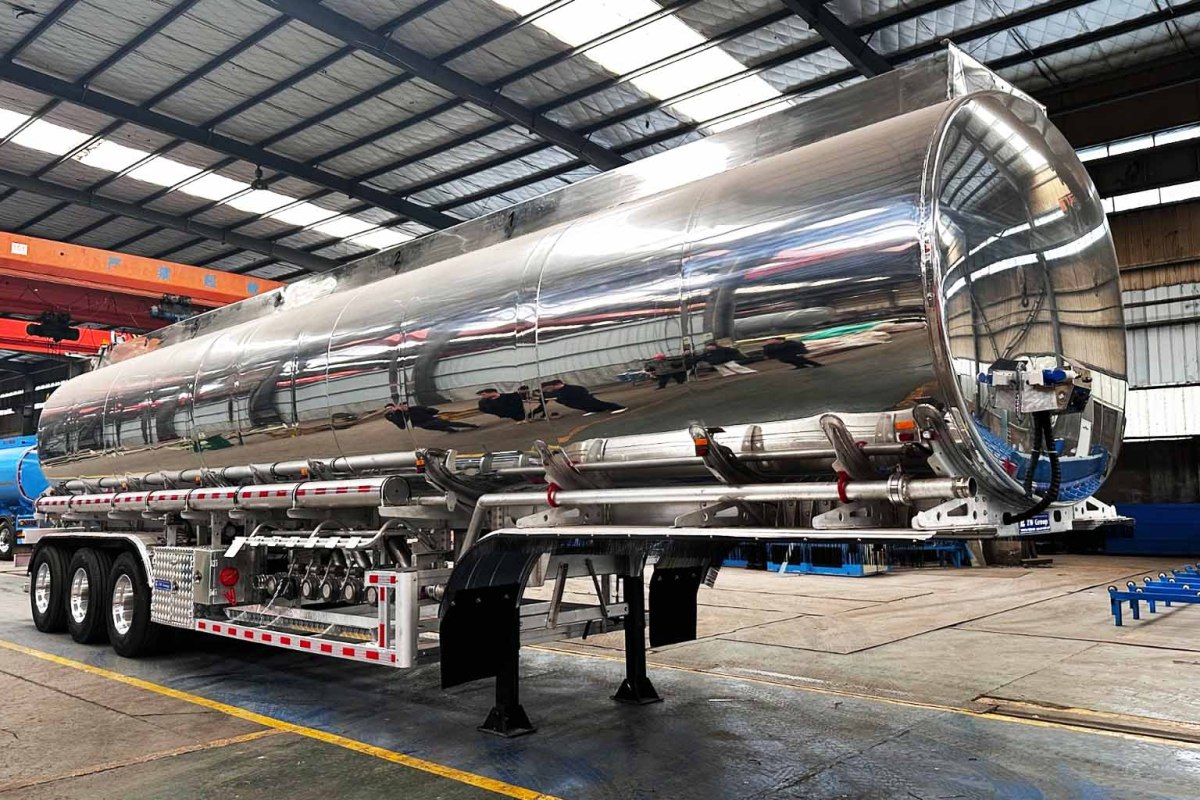

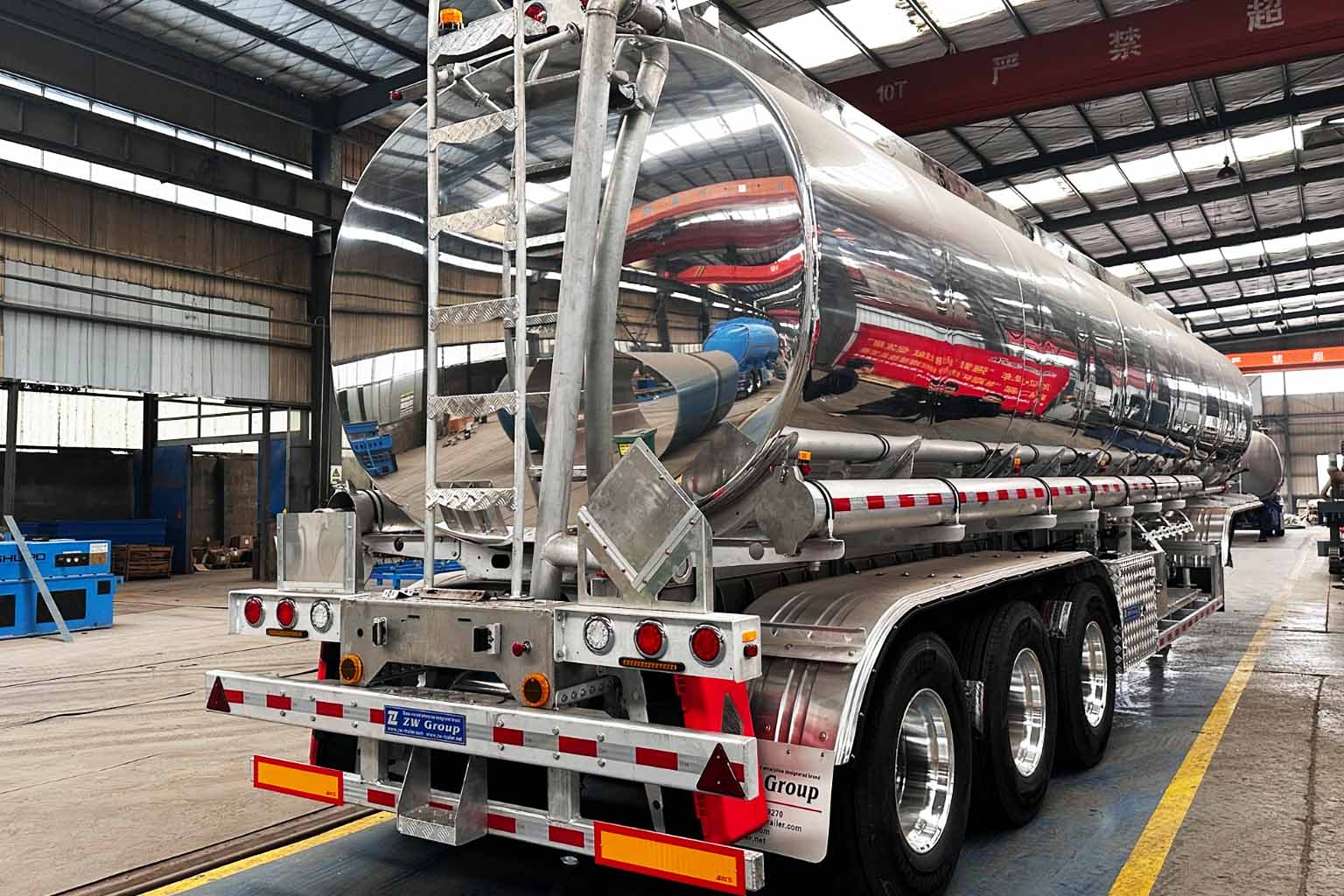

48500L aluminum tank trailer by ZW Vehicle Group

Core Engineering of the 48500L Aluminum Fuel Tanker

Every structural component of our aluminum alloy petrol tanker trailer is designed for maximum stress endurance, fluid stability, and active safety. We have eliminated unnecessary weight without compromising structural integrity.

Robust Tank Construction and Compartmentalization

The main vessel is forged from high-grade 5182 aluminum alloy, renowned in the commercial vehicle manufacturing sector for its exceptional tensile strength and corrosion resistance. To mitigate the dangerous kinetic energy generated by liquid surge during transit, the interior is equipped with 6mm thick 5182 aluminum anti-wave baffles. Furthermore, the massive 48500L volume is intelligently divided into 6 independent compartments. This multi-compartment design is critical for distributors who need to transport varying grades of gasoline and diesel in a single, highly efficient dispatch.

Advanced Running Gear: BPW Axles and Air Suspension

To ensure structural longevity across diverse road conditions, we have integrated world-class running gear. The trailer sits on a BPW 12T * 3 axle system with drum brakes and extended bolt rods for heavy-duty security. Ground contact is managed by thirteen 295/80R22.5 tires (including one spare). The defining feature of the chassis is the BPW 3-axle air suspension system. This pneumatic setup not only provides a smoother ride that protects the tank welds from micro-fractures, but it also features front axle lifting and overall lifting capabilities. Lifting the front axle during empty runs drastically reduces rolling resistance, saving fuel and prolonging tire life.

World-Class Safety and Braking Systems

Transporting hydrocarbons requires zero compromise on safety. The braking system is commanded by a genuine WABCO relay valve, ensuring split-second brake engagement across all three axles to prevent jackknifing. At the base of the tank, 6 sets of aluminum alloy emergency shut-off valves (bottom valves) are installed. In the catastrophic event of a severe collision or sheer force impact to the discharge pipes, these valves automatically seal the tank, preventing environmentally disastrous and highly dangerous fuel spills.

fuel tank semi traielr for sale

fuel tank semi traielr price

ZW Vehicle Group does not just build trailers; we manufacture comprehensive logistical assets. The exterior of this specific diesel transport semi-trailer undergoes an intense tank mirror polishing process paired with stainless steel pickling and passivation. This treatment is not merely for aesthetics. The mirror finish reflects intense solar radiation, helping to stabilize the internal temperature of volatile fuels—a crucial feature when operating in extreme climates like the Middle East or Africa. The passivation process creates an impenetrable oxide layer that prevents environmental corrosion and extends the lifecycle of the asset by years.

Operator safety is also guaranteed at the top of the vessel. We have engineered an A-shaped aluminum alloy coaming paired with a robust aluminum folding guardrail. This ensures maintenance personnel and operators can safely access the manholes and vapor recovery systems without the risk of high-altitude falls.

fuel tank semi traielr for sale

Comprehensive Technical Specifications

Below are the detailed engineering parameters for our 6 compartment fuel tanker, tailored to meet international transport standards.
