Product Description

The FAW JH6 8x4 430HP Dump Truck is engineered to meet the demands of heavy-haul operations where power, stability and uptime are non-negotiable. Combining a robust Weichai WP10.5H430E50 engine with a purposeful 8x4 chassis layout, this Dump Truck is designed for high payload cycles, improved traction on mixed terrains and long-term operational economy. It is a practical solution for contractors, mine operators and large logistics fleets that require a dependable tipper for continuous work in challenging conditions.

Powertrain and Performance

At the heart of this model sits the Euro 5 Weichai unit delivering 430 horsepower (316 kW). Compared with lower-rated powerplants, the 430HP configuration provides stronger torque reserves and improved gradeability — attributes that directly reduce cycle times on uphill runs and in soft soil. When paired with the FAST 12JS160T 12-speed gearbox, drivers can keep the engine within its optimal power band across a broad range of speeds and loads, resulting in smoother starts, better fuel utilization and less drivetrain stress during heavy haul operations.

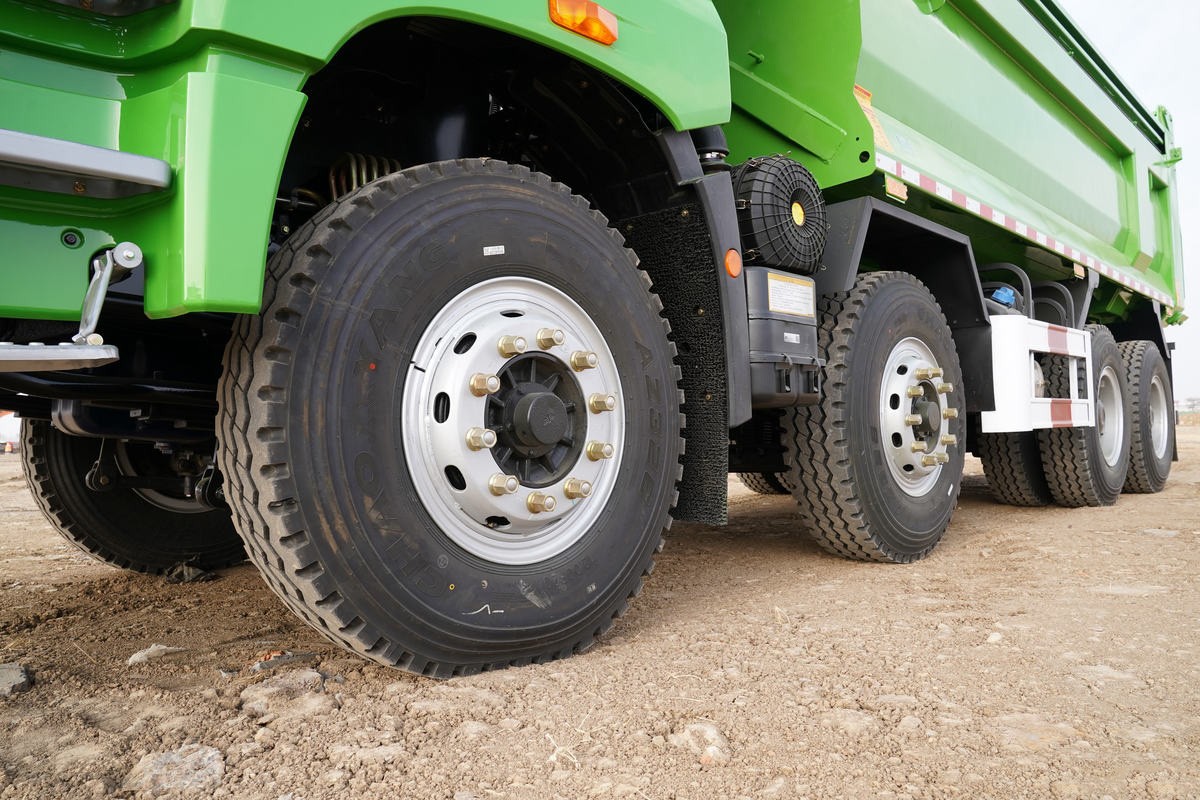

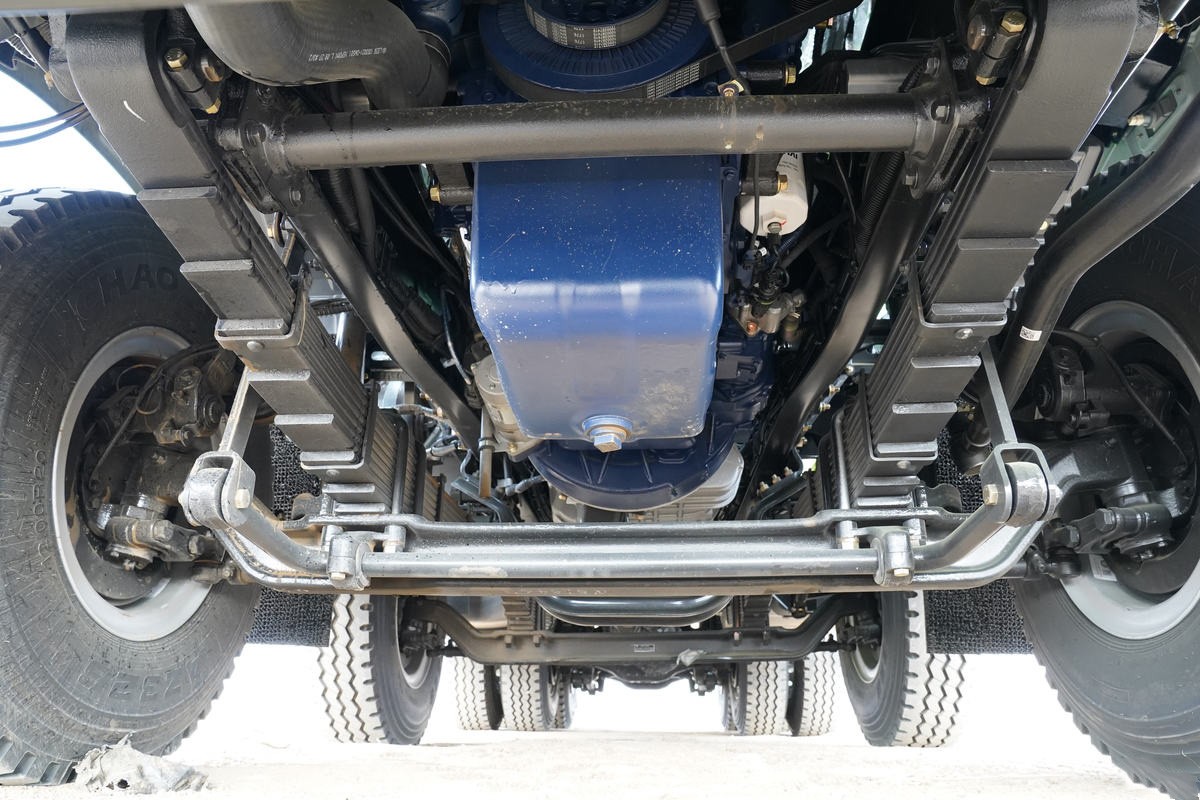

Chassis Design and Load Management

The 8x4 layout—two steering axles and two drive axles—improves axle load distribution and contact pressure across the pavement or soft ground. For large payloads up to the 31-ton GVW limit, this arrangement reduces the risk of axle overload and sinking in weak surfaces. The specified wheelbase configuration (1900+2250+1350 mm) balances frame stiffness with cargo volume, making it suitable for extended bodies used in civil engineering and bulk material transport.

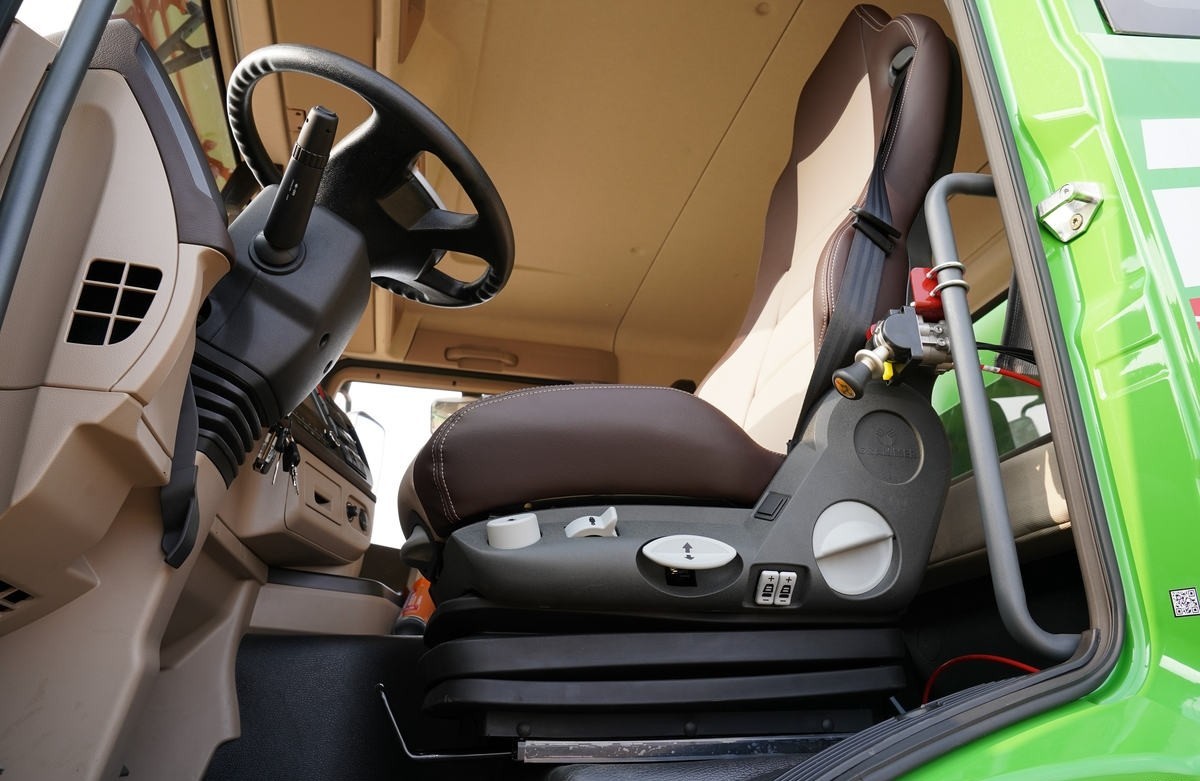

Cabin, Comfort and Driver Efficiency

The JH6 series cabin introduces a flat-floor design that increases interior volume and driver ergonomics. For long shifts and cross-regional trips, the cabin supports air-suspended seats, improved soundproofing and optional sleeper arrangements. These features reduce driver fatigue and help maintain consistent productivity over long routes, which is a measurable contributor to fleet efficiency and safety performance.

Emission Compliance and Operational Responsibility

Equipped to meet Euro 5 standards, the FAW JH6 8x4 430HP Dump Truck employs advanced combustion controls to lower particulate emissions while preserving power delivery. For operators working in regulated zones or bidding on public infrastructure contracts, this compliance is a practical asset that simplifies permitting and helps meet environmental requirements.

Durability, Maintenance and TCO

FAW’s mature chassis platform is the product of decades of iterative design. Reinforced frame rails, robust suspension components and a drivetrain rated for heavy-duty cycles reduce the frequency of structural fatigue and downtime. Routine maintenance intervals are straightforward, and global parts compatibility reduces lead time for repair components. Taken together, these elements lower the total cost of ownership (TCO) and improve asset availability for demanding operations.

Who Benefits Most

• Mining operations requiring frequent haulage of overburden or ore across uneven, medium-distance routes.
• Large infrastructure and civil works projects (dams, airports, highways) that demand high-capacity, predictable tipper cycles.
• Cross-regional logistics fleets transporting bulk commodities where consistent cruising power is essential.
• Municipal earthworks and large urban redevelopment projects needing efficient removal of excavated material and demolition debris.

Operational Advantages — Practical Examples

1. On steep haul roads, the 430HP engine maintains momentum under load, reducing the need for assisted downhill braking and preventing frequent stalls during grade climbs.
2. In soft ground conditions, the 8x4 axle configuration disperses ground pressure and reduces the likelihood of bogging, minimizing recovery time and equipment strain.

3. For high-cycle worksites, increased payloads per trip and improved average speeds translate to fewer shifts needed to move the same volume of material.

Choosing the Right Configuration

Selecting between an 8x4 and a 6x4 model should be guided by the work profile. If your operations consistently demand maximum payloads, longer chassis bodies or frequent travel on soft or varying terrain, the 8x4 arrangement is the superior choice for stability and reduced infrastructure wear. If space constraints, lighter payloads or tighter maneuverability are priorities, alternative configurations may be appropriate. A qualified supplier will match wheelbase and axle setup to site-specific conditions and regulatory requirements.

Logistics, Delivery and After-Sales

The FAW JH6 8x4 430HP Dump Truck is shipped primarily via Ro-Ro or bulk cargo vessels due to its length and dimensions. Typical delivery lead times are 15–20 days, supported by a production capacity of up to 100 units per month. Reliable suppliers will provide pre-shipment inspections, protective coatings for sea transit and a starter kit of consumables (filters, belts) to minimize initial downtime. Genuine parts for the Weichai engine and FAST transmission should be available through the supplier’s logistics channels, including air freight for urgent needs.

The FAW JH6 8x4 430HP Dump Truck represents a balanced combination of power, stability and operational efficiency designed for heavy-duty use. Its Euro 5 Weichai engine, strong chassis platform and driver-focused cabin make it a compelling option for projects where uptime, payload throughput and compliance matter. Before purchase, engage with an experienced supplier to confirm wheelbase configuration, body specification and service arrangements so the vehicle aligns with your site conditions and business objectives.

For procurement inquiries, production scheduling, and detailed technical consultation about the FAW JH6 8x4 430HP Dump Truck and related fleet solutions, contact us. Transparent communication, verified pre-shipment inspection and reliable spare-parts logistics will protect your investment and keep your operations moving.

Technical Specifications
