Overview

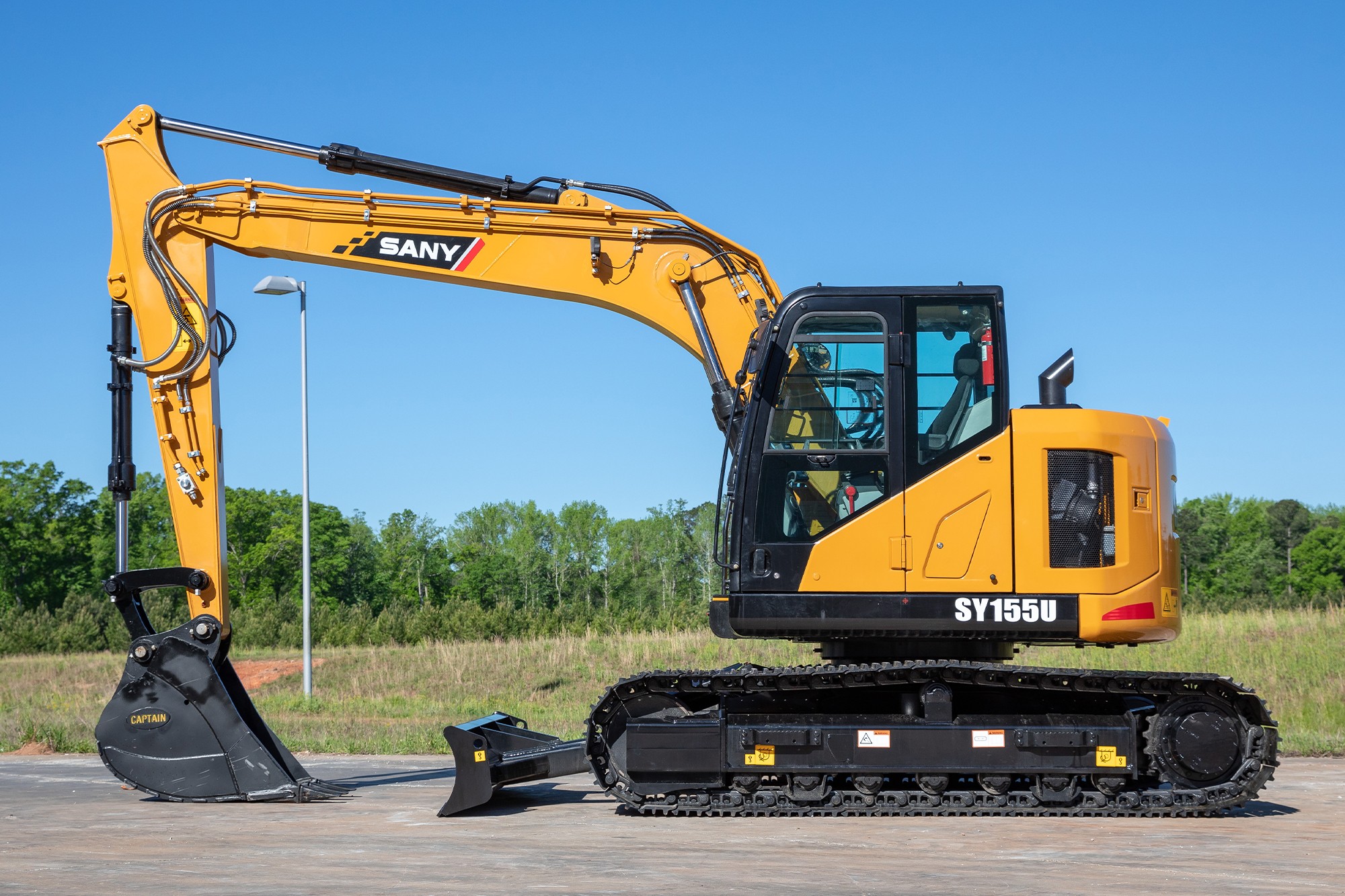

The Used Sany Sy155U Excavator is a short-tail-swing machine engineered for high productivity in constrained environments. Equipped with an ISUZU 4JJ1X Stage V engine delivering 78.5 kW at 1,900 rpm, the machine balances fuel economy and torque to meet demanding excavation tasks. With an operating weight of 16,000 kg and a standard bucket of 0.6 m³, this model is tailored for contractors, municipal crews and rental fleets that require a compact footprint without compromising on digging performance.

Design Highlights and Core Advantages

Compact Short-Tail Swing

The Sy155U's short slewing radius reduces counterweight overhang, enabling safer operation near walls, sidewalks and other obstacles. Reduced tail swing improves maneuverability on urban sites and tight job locations where traditional full-tail excavators cannot operate effectively.

Engine Efficiency and Emissions

Powered by the ISUZU 4JJ1X Stage V engine, the used Sany Sy155U Excavator adheres to stringent emission standards while providing reliable torque for breakthrough digging force. SANY's new-type engine system and integrated DOMCS control (engine-pump-valve coordination) enhance overall efficiency by over 8% and reduce fuel consumption by more than 10% compared to earlier designs—benefits that directly lower operating costs.

Hydraulics and Digging Performance

The hydraulic system features dual high-flow circuits delivering 2 × 110 L/min, which supports steady attachment performance and responsive boom, arm and bucket movements. With a bucket digging force of 103 kN and arm digging force of 67 kN, the Sy155U is well suited for medium-duty excavation, trenching and site preparation tasks.

Operational Capabilities

• Max digging depth of 5,468 mm and reach of 8,338 mm — suitable for deep footings and long-reach trenches.

• Minimum swing radius of 2,086 mm — allows operation close to obstructions with minimal repositioning.

• Transport dimensions (7,300 mm length, 2,590 mm width) fit common transport trailers and simplify logistics.

Typical Applications and Use Cases

The Used Sany Sy155U Excavator performs well across a variety of sectors. Typical applications include:

1. Urban construction: foundation excavation, utility installation and confined-site earthmoving.

2. Road and civil works: culvert digging, trenching for drainage, and roadside repairs.

3. Landscaping and site development: grading, stump removal and material handling with appropriate attachments.

4. Rental and fleet operations: compact footprint and efficiency make the SY155U a versatile rental asset.

Who Benefits Most

This model is particularly well suited to:

1. General contractors requiring a compact machine for urban or congested sites.

2. Municipal maintenance teams working on utilities and drainage.

3. Equipment rental companies seeking a reliable, fuel-efficient mid-weight excavator.

4. Earthmoving subcontractors focusing on trenching and foundation preparation.

Durability, Adaptability and Serviceability

SANY's focus on robust components and corrosion-resistant coatings improves machine longevity in varied climates and working conditions. Enhanced heat dissipation, efficient filter systems and improved material compatibility raise the SY155U's tolerance to difficult environments and inconsistent oil qualities often encountered in field use.

Serviceability considerations for used units remain critical: routine inspection of hydraulic hoses, pins and bushings, undercarriage components and engine service intervals will protect performance and resale value. Availability of parts and SANY's global aftermarket support network make maintenance predictable for fleet managers.

Fuel Economy and Total Cost of Ownership

The combination of the advanced ISUZU Stage V engine and SANY's integrated control systems means measurable fuel savings during typical duty cycles. For fleet operators, reduced fuel consumption combined with modest operating weight and reliable hydraulic power translates into lower hourly operating costs and improved fleet utilization.

Attachments and Versatility

Although supplied with a 0.6 m³ standard bucket, the Sy155U is compatible with a range of attachments to expand job scope, including:

1. Hydraulic breakers for demolition and road repair.

2. Thumbs and grapples for material handling.

3. Narrow buckets for trenching and grading buckets for finish work.

4. Quick-couple systems for fast attachment changes on rental sites.

Safety and Operator Comfort

Cab and ROPS configurations provide operator protection while maintaining visibility around the work area. Ergonomic controls, clear instrumentation and a competent service layout reduce operator fatigue and simplify inspections. The machine's compact tail radius further contributes to safe operations in congested spaces.

What to Inspect When Buying a Used Unit

1. Engine history: service records, smoke at start-up and consistent idle behavior.

2. Hydraulic system: leaks, hose condition and stable pressure under load.

3. Undercarriage wear: track tension, shoe and roller condition — significant contributors to replacement cost.

4. Pins and bushings: play in boom, arm and bucket linkages affect digging accuracy.

5. Attachment interfaces and electrical systems: ensure quick couplers and controls operate reliably.

Logistics, Delivery and Fleet Integration

With delivery lead times typically between 15 and 20 days and a supply capacity of up to 10,000 units per month, sourcing used Sany Sy155U Excavator units is feasible for large-scale fleet refreshes or quick replacements. Standard transport dimensions fit most low-bed trailers; confirm local permitting and secure tie-down procedures to protect equipment in transit.

Comparison and Market Position

The Sy155U occupies a practical niche between compact excavators and large mid-size machines. Compared to similar class machines, it emphasizes maneuverability and fuel efficiency rather than maximum breakout force. For projects prioritizing access and versatility in urban environments, the Used Sany Sy155U Excavator competes favorably with offerings from other manufacturers in the 14–18 tonne class.

Final Considerations for Purchase

When evaluating a used SY155U, align machine selection with your operational profile: consider typical duty cycles, attachment requirements and transport logistics. Factor in lifecycle costs including fuel, scheduled maintenance and parts availability. The Sy155U is an attractive option for firms that need a compact, fuel-conscious excavator capable of sustained performance in tight working conditions.

If you require additional, unit-specific information such as hours, service history or inspection reports, request the machine's maintenance log and arrange a pre-purchase inspection. That due diligence preserves resale value and confirms the unit meets your operational expectations.

Conclusion

The Used Sany Sy155U Excavator offers a practical balance of compact design, reliable ISUZU engine performance and efficient hydraulic control. For contractors, rental companies and municipal operators who work in constrained sites, this model delivers controlled digging performance, favorable fuel economy and broad adaptability through common attachments. With predictable delivery and strong supply capacity, the SY155U is a viable candidate for those upgrading or expanding mid-weight fleets.
