Technical Specifications

Brand: Sany   |   Product origin: China   |   Delivery time: 15–20 days   |   Supply capacity: 10,000 Unit/Month

Product Overview and Value Proposition

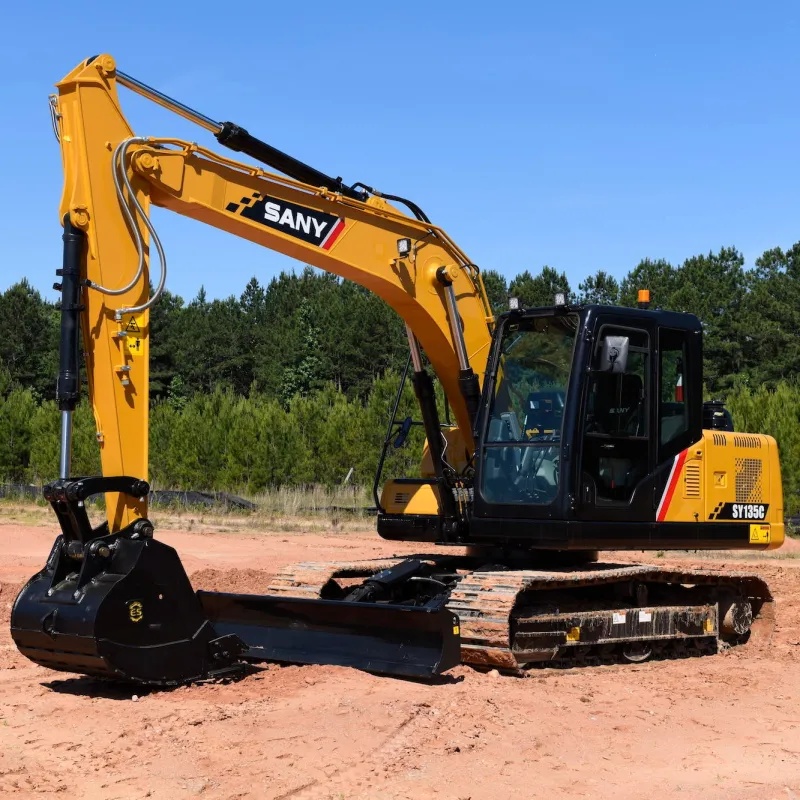

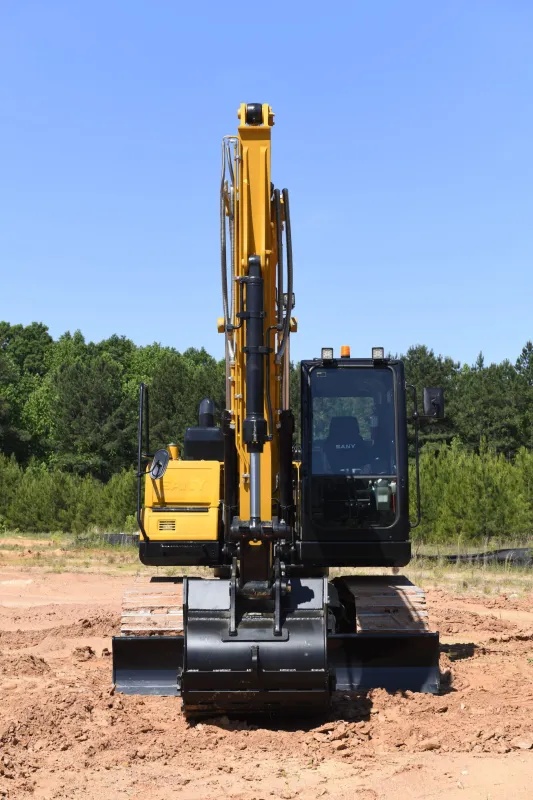

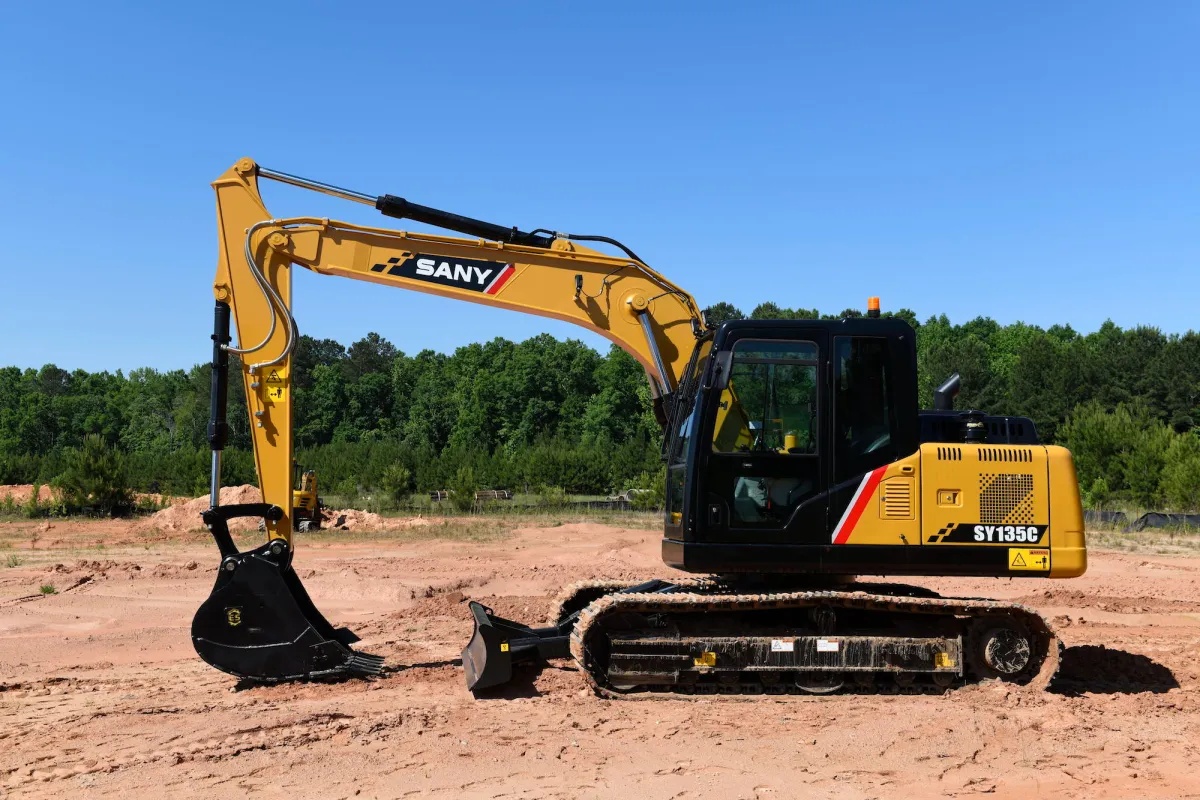

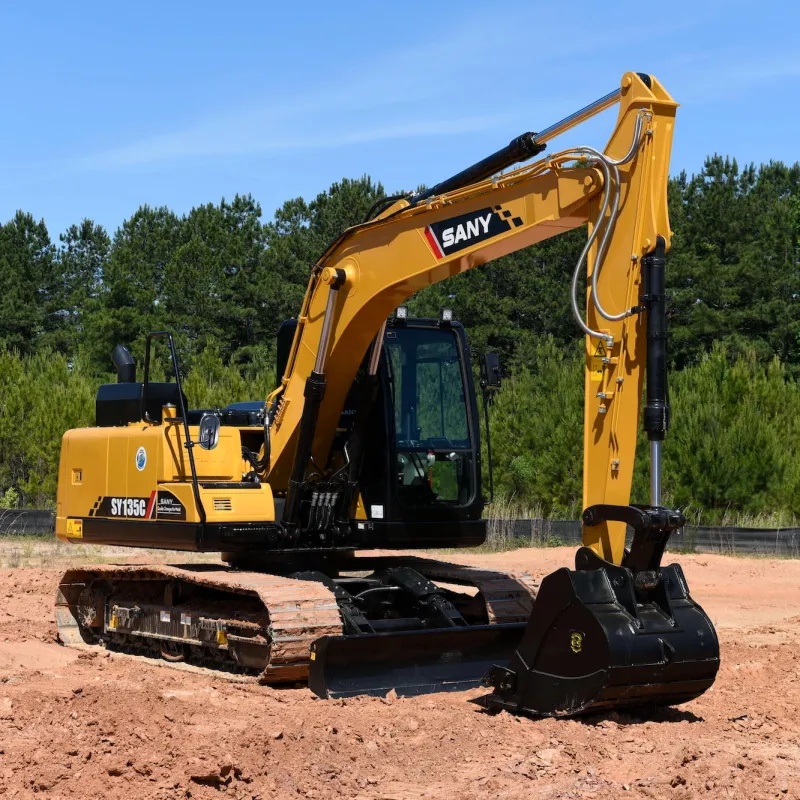

The Used Sany Sy135C Excavator offers a compelling balance of power, efficiency and compact footprint for civil works, utilities, landscaping and medium-scale construction. Equipped with a robust ISUZU engine and SANY's integrated hydraulic controls, this machine is engineered to deliver reliable digging, lifting and travel performance while maintaining fuel efficiency and low operating costs. The SY135C's nearly 15-ton operating weight and heavy-duty undercarriage provide stability that allows contractors to apply its rated power precisely where it matters.

Key selling points

1. Balanced power-to-weight ratio: 78.5 kW output with a compact footprint for versatile site access.

2. Efficient hydraulic system: SANY's DOMCS engine-pump-valve control lowers fuel consumption and improves responsiveness.

3. Robust undercarriage and blade: Heavy-duty steel track and wide dozer blade increase job-site stability.

4. Practical travel performance: Dual travel speeds and strong travel effort support steady relocation and grading work.

5. Wide supply capability and short delivery lead time—suitable for fleet replenishment.

Engine, Hydraulics and Efficiency

Engine characteristics

The powerplant in this unit is an ISUZU FT4-4JJ1X (also referenced as ISUZU 4JJ1X Stage V in supplied documentation), delivering a gross power of 78.5 kW (105.3 HP). The engine displacement of 2.99 L supports a reliable torque curve for digging and auxiliary hydraulic work. SANY's integration of a new-type engine system contributes to an efficiency improvement and lower fuel consumption, a critical factor for owners managing operational expenses.

Hydraulic system and control

The SY135C uses a high-efficiency hydraulic architecture with a maximum operating flow of 242 L/min and an operating pressure up to 34.3 MPa. The DOMCS (engine-pump-valve control) combined with a positive flow design enhances responsiveness for boom, arm and bucket motions. Primary and secondary auxiliary circuits allow reliable attachment operation—making the machine well-suited for breakers, augers and compactors.

Structural Design and Undercarriage

The Sany Sy135C Excavator's chassis emphasizes stability and durability. A wide, heavy-duty steel track undercarriage and a substantial dozer blade distribute loads effectively across the footprint, reducing ground pressure to approximately 41 kPa and improving performance on soft or uneven terrain. Seven track rollers per side and carrier rollers are configured to deliver balanced track tension and long-term wear resistance. Track shoe width at 600 mm (24") further contributes to stability during heavy lifts and when operating on slopes up to 35°.

Operator Comfort, Safety and Serviceability

Operator-centric design reduces fatigue and improves productivity. Controls are arranged for intuitive operation and visibility from the cab is optimized to maintain awareness around the work area. Safety features include reinforced structures, clear sightlines and secure access points for maintenance. Serviceability is a priority: routine service points are grouped for fast checks, filters and cooling circuits are designed for extended life and easier replacement, which reduces downtime and total lifecycle costs.

Cooling and adaptability

SANY enhancements to cooling, filtration and corrosion resistance improve the excavator's adaptability to harsh conditions and a variety of hydraulic oils. These measures reduce the risk of premature component wear in hot, dusty, or corrosive environments and make the SY135C a versatile choice for diverse operational theaters.

Typical Applications and Ideal Users

The Used Sany Sy135C Excavator is positioned to serve contractors and fleet managers who need a reliable, mid-sized machine that can access constrained sites yet deliver near-large-machine capability. Typical applications include:

1. Urban construction and utility installation—where compact size and power are required for trenches and foundation work.

2. Road maintenance and landscaping—grading, trenching and material handling with auxiliary attachments.

3. Rental fleets—robust design and wide attachment compatibility make the SY135C a flexible rental unit.

4. Light demolition and site preparation—where controlled swing and steady travel forces are beneficial.

Purchasing Considerations for Used Units

When evaluating a used Sany Sy135C Excavator, buyers should inspect structural components, hydraulic system condition, undercarriage wear and engine health. Key checkpoints include:

1. Hour meter and service history—regular maintenance records indicate consistent care.

2. Hydraulic hoses and seals—check for leaks, abrasion and consistent pressure behavior during operation.

3. Undercarriage wear measurements—track chain stretch, sprocket and roller conditions affect remaining life.

4. Engine diagnostics—compression, smoke level, and oil analysis where available.

5. Attachment pins and bushings—measure for wear and play which impact digging accuracy.

These inspections reduce risk and help establish a realistic lifecycle cost forecast for the purchase. Our supply quantity and delivery window (15–20 days) support both single-unit purchases and fleet procurement programs.

Maintenance, Parts Availability and Support

Sany's global parts network and the commonality of ISUZU engine components make routine maintenance and parts replacement straightforward for operators worldwide. Regular maintenance intervals—oil and filter changes, hydraulic fluid checks, track adjustments and cooling system inspections—are essential to preserve efficiency and extend component life. For fleet managers, predictable maintenance scheduling and access to replacement parts reduce unforeseen downtime and protect resale value.

Comparative Advantage and Operational Economics

Compared with other mid-size excavators, the SY135C's advantages lie in fuel efficiency enabled by the DOMCS control system and the proven ISUZU engine platform. The machine is engineered to be competitive in both initial acquisition cost (as a used unit) and ongoing operating expenses. Contractors focusing on measurable fuel savings and lower maintenance demands will find the SY135C attractive when evaluating lifecycle cost metrics against alternative models in the same class.

Summary and Takeaway

The Used Sany Sy135C Excavator is a pragmatic choice for operators who require a mid-sized excavator that combines stability, hydraulic efficiency and adaptable performance. Its nearly 15-ton operating weight, ISUZU powerplant, and SANY hydraulic innovations provide a dependable package for varied job-site demands. With rapid delivery capability and high monthly supply capacity, this model is well suited for contractors, rental fleets and project owners seeking dependable used equipment with clear operational advantages.

If your operation requires a versatile excavator that balances productivity and economy, the Used Sany Sy135C Excavator merits consideration. Contact our sales team for unit condition reports, inspection records and shipping options to facilitate an informed acquisition decision.
