Mali Client Successful Purchase: 4-Axle U-Shaped Rear Dump Semi Trailer
Quick Project Update: We are delighted to confirm that a new client from Mali has officially placed an order for ZW Vehicle Group's heavy-duty 4-axle U-shaped rear dump semi trailer. This 80-ton capacity unit, equipped with Zhengyang axles and Wanli tires, is specifically configured to handle the rigorous mining and construction environments of West Africa.
As the demand for infrastructure development grows across Africa, so does the need for reliable, high-capacity transport solutions. ZW Vehicle Group is proud to expand its footprint in the Malian market with this latest delivery of our advanced U-shaped rear-tipping dump trailer. This article explores the technical specifications and engineering craftsmanship that make this new dump trailer the preferred choice for our international partners.
Why the 4-Axle U-Shaped Design?
The decision by our Mali client to select the U-shaped rear dump trailer over a traditional rectangular box was driven by efficiency and durability. The U-shape design offers distinct advantages crucial for heavy hauling:
- Cleaner Unloading: The curved corners of the U-shape box prevent sticky materials like red clay, wet sand, and bauxite—common in Mali—from adhering to the trailer corners. This ensures a faster, cleaner dump cycle without manual intervention.
- High Strength-to-Weight Ratio: By utilizing high-tensile steel and a curved structure, the trailer absorbs stress better than a flat-sided trailer. This allows for a lighter tare weight without sacrificing the massive 80-ton payload capacity.
Lower Center of Gravity: The U-shape design allows the cargo to sit lower within the chassis, improving stability while cornering on uneven unpaved roads.
Technical Deep Dive: Built for 80 Tons
A trailer is only as good as its weakest component. For this 4-axle U-shaped rear dump semi trailer, ZW Vehicle Group utilized a configuration that prioritizes structural integrity and component longevity.
1. Reinforced Chassis & Body Construction
To handle an 80-ton rated capacity, standard steel is insufficient. We utilized a robust beam structure:
- Longitudinal Beam: The backbone of the trailer features a web plate thickness of 10mm.
- Flanges: The upper wing plate is 14mm thick, and the lower wing plate is reinforced to 16mm. This "Top 14 / Bottom 16" configuration prevents beam bending under heavy vertical loads.
- Floor & Walls: The dump box features an 8mm thick floor and 6mm thick side walls. This ensures resistance against impact from large rocks during loading operations.
2. Heavy-Duty Running Gear
The roads in Mali can be unforgiving. Therefore, the suspension and wheel systems were upgraded:
- Axles: The unit features 4 axles from the renowned brand Zhengyang. Multi-axle configurations spread the weight effectively, reducing ground pressure and meeting local axle load regulations.
- Tires: We installed 16 units of 12RR22.5 Wanli Brand tires. These are premium radial tires known for their wear resistance and heat dissipation capabilities.
- Suspension: A rugged Mechanical Suspension system was chosen for its reliability and ease of maintenance in remote areas where hydraulic suspension parts might be scarce.
3. Hydraulics and Safety
The lifting mechanism is the heart of any dump trailer. This unit includes a high-performance hydraulic system operated via a convenient Hydraulic Oil Tank Button. For safety, the trailer comes standard with Factory-Installed ABS to prevent wheel lockup during emergency braking on slippery surfaces.

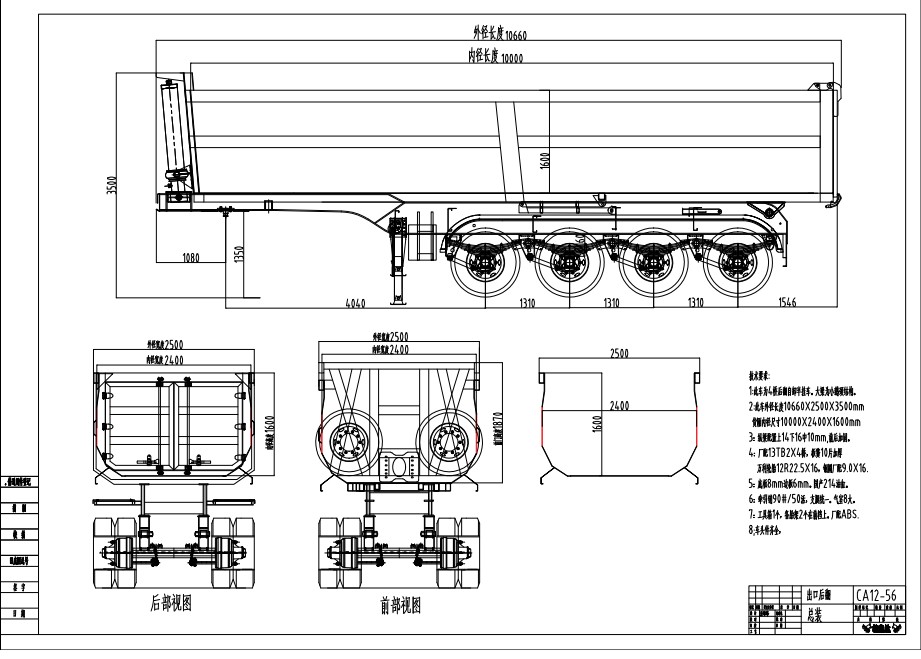

Full Specifications: 4-Axle U-Shape Rear Dump Trailer
Below is the detailed specification sheet for the model purchased by our Mali client. These specs ensure the trailer meets the new dump trailer standards for international export.
Frequently Asked Questions (FAQ)
Here are answers to common questions regarding our 4-axle U-shaped rear dump semi trailer.
Q: Can the 4-axle configuration be customized for different weight limits?
A: Yes, while this specific unit is rated for 80 Tons, we can adjust the axle number (3-axle, 4-axle, or 5-axle) and suspension type to meet your country's specific road weight regulations and payload needs.
Q: How does the U-shape design improve durability?
A: The U-shape reduces the number of weld points compared to a rectangular box. Fewer welds mean fewer potential stress points where cracks could form. The curved sheet metal naturally resists deformation under load.
Q: Is the trailer suitable for transporting large rocks?
A: Absolutely. With an 8mm thick floor made of high-strength steel, this trailer is designed to withstand the impact of loading heavy rocks, ores, and construction debris without puncturing.
Q: What is the delivery time for a new dump trailer to Mali?
A: Production typically takes 20-30 days. Shipping times to West Africa vary, but we have established logistics partners to ensure the fastest possible route to the client.
Partner with ZW Vehicle Group Today
The successful export of this 4-axle U-shaped rear dump semi trailer to Mali is a testament to ZW Vehicle Group's commitment to quality and customer satisfaction. Whether you are in construction, mining, or logistics, our custom vehicle solutions are built to drive your business forward.
Are you looking for a reliable new dump trailer or a customized semi-trailer solution? Contact us today for a quote.
