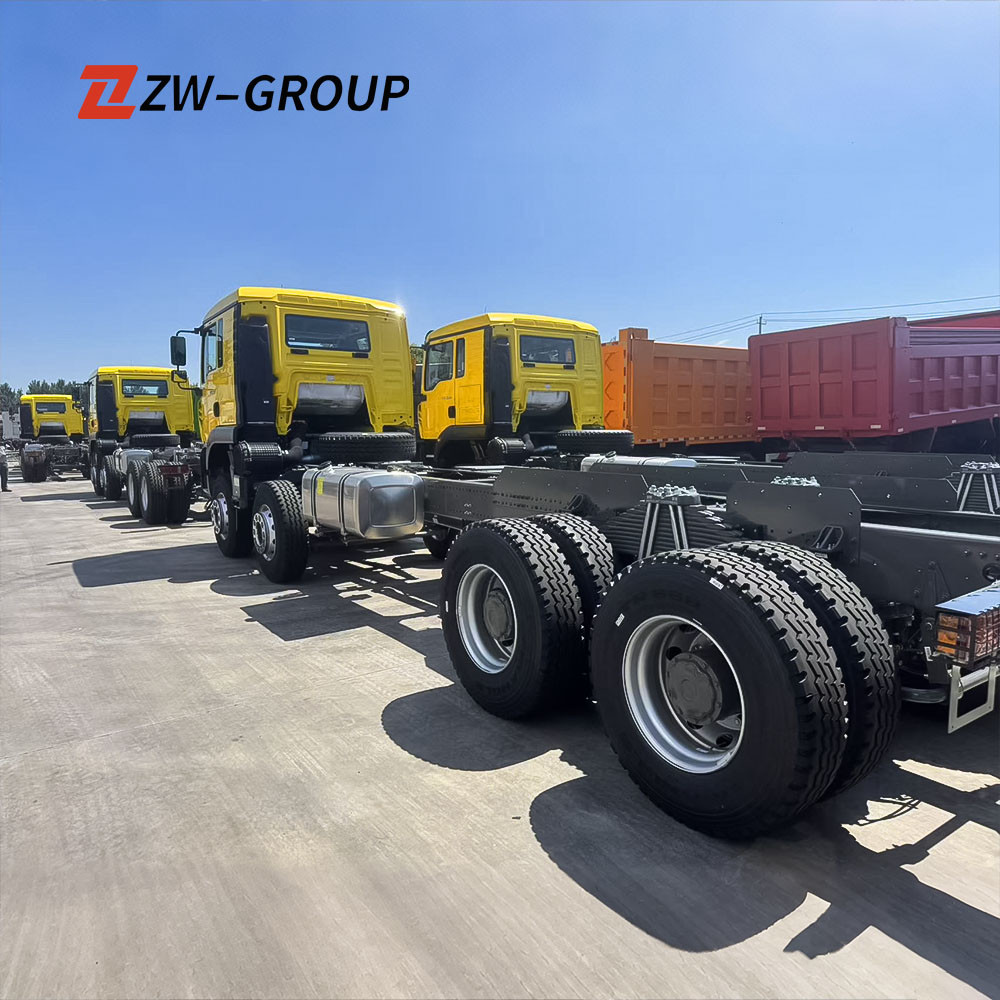

Brand New 8x4 Cargo Truck Chassis Delivered to Congo: A Custom Solution by ZW Vehicle Group

In the demanding world of heavy logistics, the right equipment is not just an asset; it is the backbone of success. Recently, ZW Vehicle Group achieved another milestone by successfully manufacturing and exporting a Brand new 8x4 cargo truck chassis to a valued client in the Democratic Republic of the Congo. This transaction highlights our capability to deliver high-specification, heavy-duty vehicles tailored to the unique environmental and operational challenges of the African continent.

The client, a prominent logistics operator in Congo, required a vehicle capable of handling massive payloads while navigating challenging road conditions ranging from paved highways to muddy off-road terrain. Their search for a reliable 8x4 truck chassis led them to ZW Vehicle Group, where we customized a solution centered around the robust HOWO platform. This article details the technical specifications, craftsmanship, and strategic advantages of this heavy-duty machine.

The Power Core: WP12.400E201 Engine Performance

At the heart of this Brand new 8x4 cargo truck lies the formidable Weichai WP12.400E201 engine. For our Congo client, the choice of engine was critical. The WP12 series is renowned globally for its reliability, but the specific configuration of 400hp combined with Euro II emission standards makes it the ultimate choice for this region.

Why Euro II? In many parts of Africa, including Congo, access to high-grade low-sulfur diesel and AdBlue (required for Euro V/VI engines) can be inconsistent. The Euro II engine is far more tolerant of varying fuel qualities and features a simpler mechanical structure. This ensures that maintenance is straightforward and that the truck remains operational without the risk of sensitive sensor failures. With 400 horsepower on tap, this engine provides the raw torque needed to pull heavy loads up steep gradients without overheating.

Transmission and Drivetrain: Built for Control

Transferring the engine's power to the wheels is the HW19710 transmission, a 10-speed manual gearbox (10 Forward + 2 Reverse). This transmission is a staple in the heavy truck industry, known for its wide gear ratio range which allows the driver to optimize engine performance whether the truck is empty or fully loaded.

Crucially, this Brand new 8x4 cargo truck is equipped with an HW70 PTO (Power Take-Off). This addition provides the client with immense versatility, allowing the chassis to be retrofitted with hydraulic pumps for dump bodies, cranes, or other specialized equipment upon arrival in Congo. The drivetrain is further optimized for Left Hand Drive (LHD), aligning with the local traffic regulations.

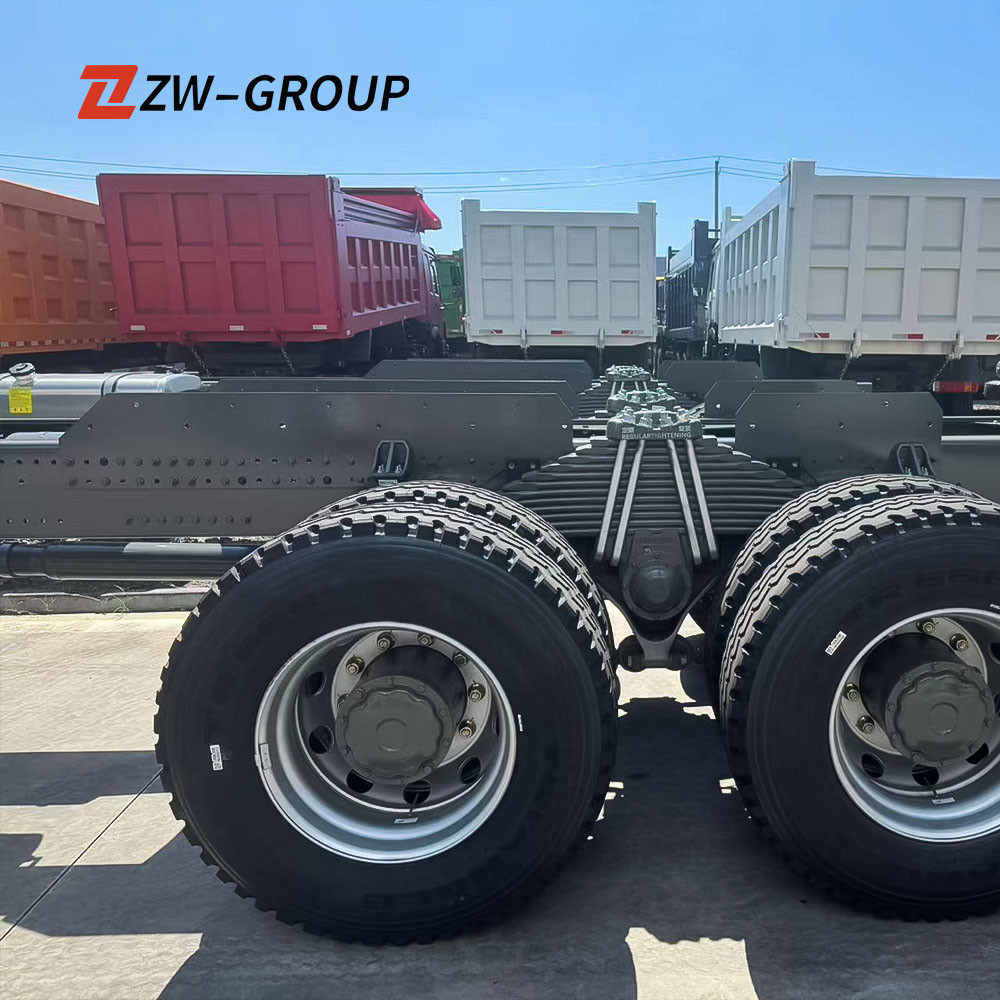

Chassis Dynamics: Axles and Suspension

The structural integrity of a truck is defined by its axles. For this order, ZW Vehicle Group spared no expense in ensuring maximum load-bearing capability:

• Front Axle (VGD95): The dual front steering axles are VGD95 models, rated at 9.5 tons each. These heavy-duty axles provide superior steering stability and can withstand the intense vertical impact forces encountered on uneven roads.
• Rear Axle (MCP16ZG): The rear drive axles are the highlight of this build. The MCP16ZG is a 16-ton casting axle with a hub reduction mechanism. With a ratio of 4.77, these axles amplify torque at the wheels, ensuring the truck doesn't get stuck in soft soil or mud—a common scenario in Congo's rainy season.

Tire Configuration and Safety Features

Tires are the only contact point between the vehicle and the road, making their selection vital for safety and efficiency. This Brand new 8x4 cargo truck is fitted with 12.00R20 radial tires, but with a specific strategic layout:

The front steering wheels feature a mixed pattern, designed to provide excellent directional stability and water evacuation. The rear driving wheels utilize a block pattern. Block patterns are aggressive and chunky, digging into loose earth and mud to provide the necessary traction to move heavy loads forward.

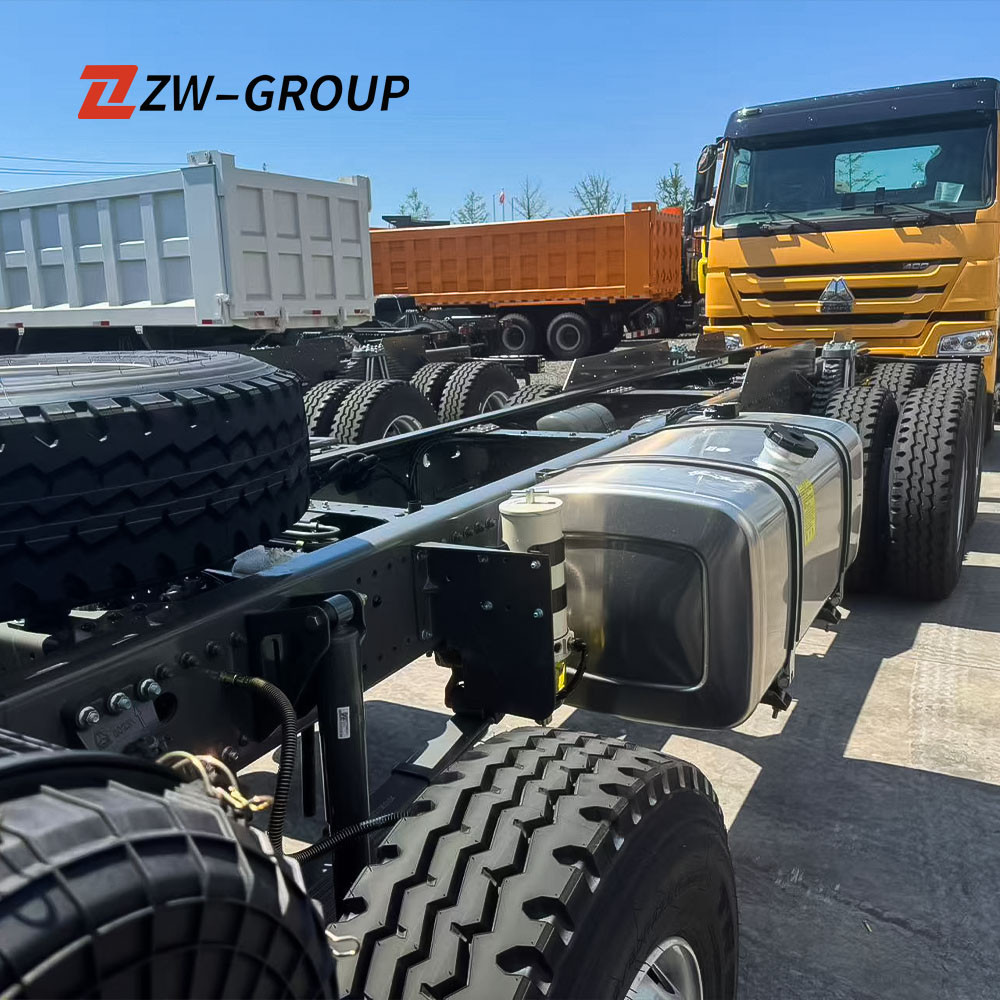

Interestingly, the client requested the vehicle without ABS (Anti-lock Braking System). While ABS is standard in many Western markets, some experienced operators in off-road heavy haulage prefer the direct control of a non-ABS system, particularly when braking on loose gravel where locking the wheels can sometimes build up a wedge of material that helps stop the vehicle faster. We also installed a high-capacity 400L fuel tank to ensure long-range capability between refueling stops.

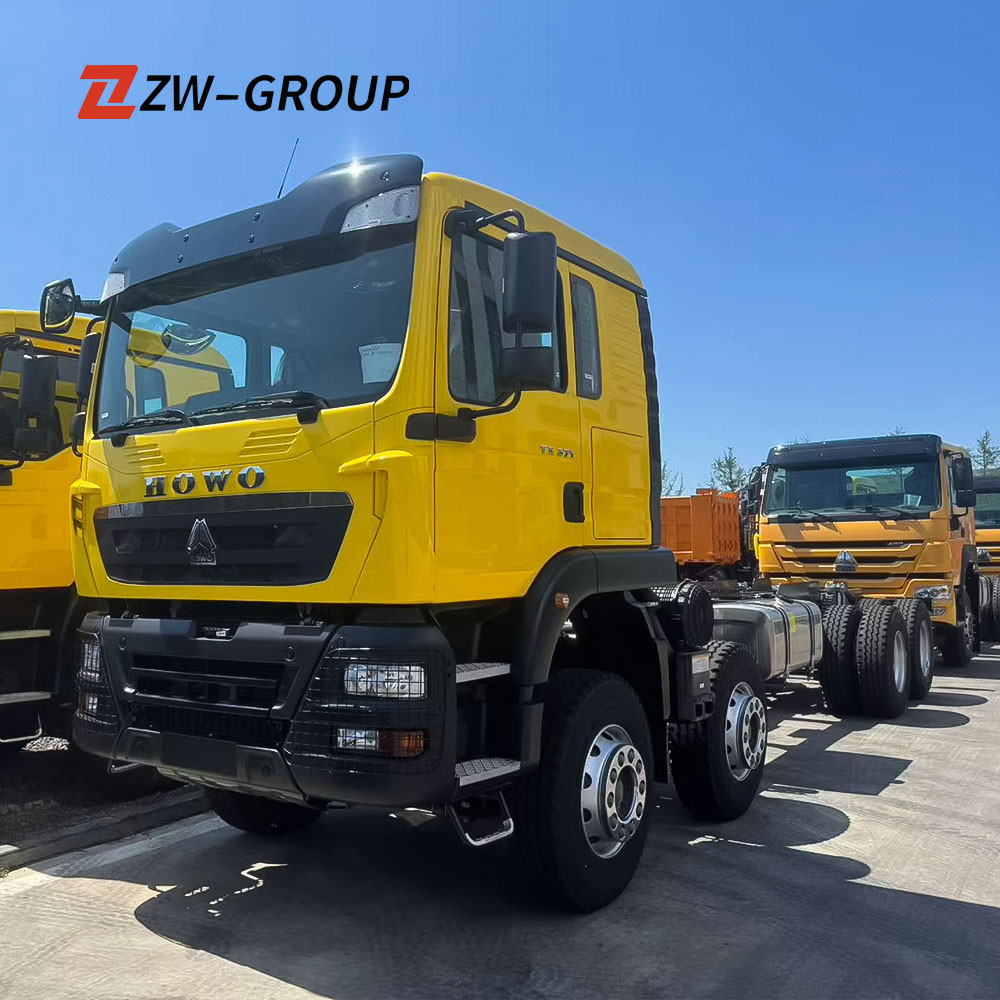

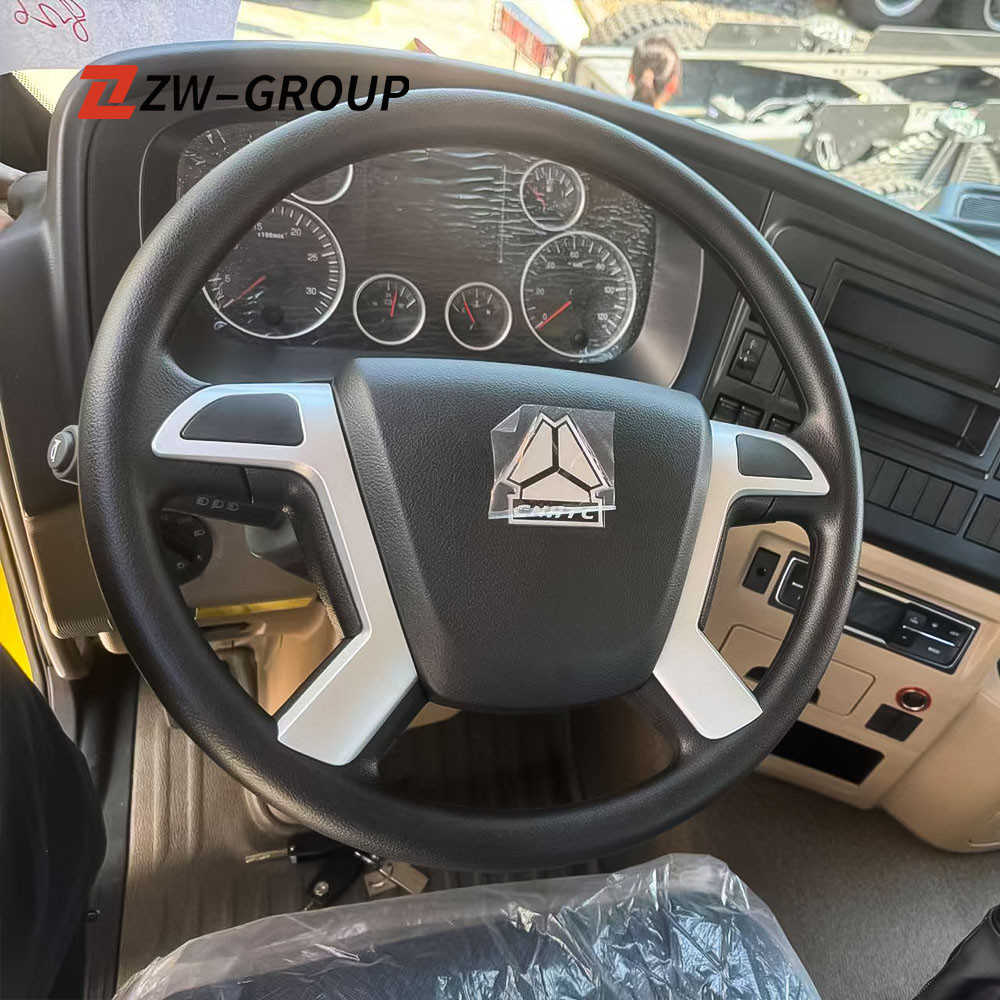

Cabin Comfort and Design

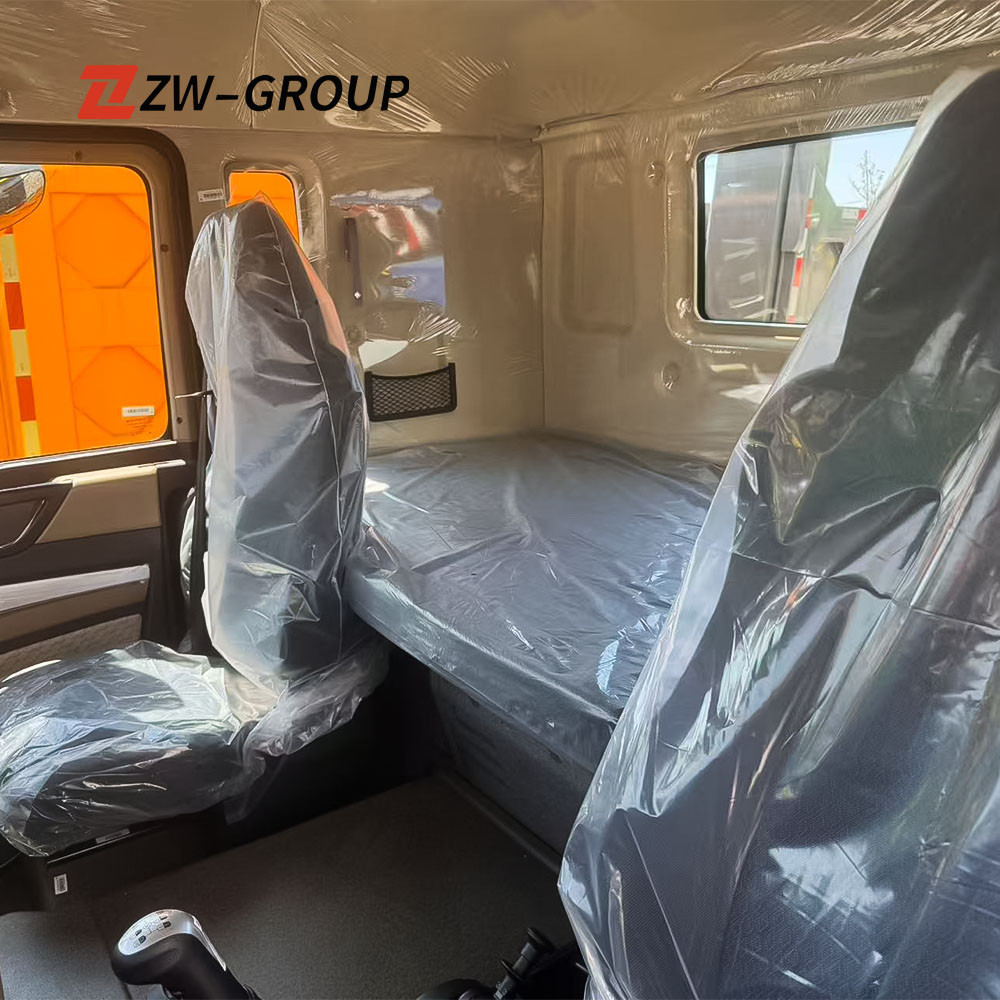

The truck features the classic HW76 old face cabin. This design is iconic for a reason. It offers a spacious interior with a sleeper bunk, allowing drivers to rest during long-haul trips across the vast distances of Congo. We customized the front by removing the low front protection bar, increasing the approach angle. This modification prevents the front bumper from scraping against rocks or steep inclines, further enhancing the truck's off-road capability. Additionally, 2 top lights were installed to improve night-time visibility in areas lacking street lighting.

Technical Specifications Summary

Why Choose ZW Vehicle Group for Your Truck Needs?

The successful delivery of this Brand new 8x4 cargo truck to Congo demonstrates ZW Vehicle Group's expertise in international trade and vehicle customization. We don't just sell standard vehicles; we listen to our clients' needs. Whether it is adjusting the axle ratio for better torque or selecting the right tire pattern for specific soil types, our engineering team ensures that every vehicle is optimized for its destination.

Our stringent quality control processes ensure that every chassis, engine, and transmission component is inspected before shipment. Furthermore, our logistics team handles the complex documentation required for export to Congo, ensuring a smooth customs clearance process for our clients.

Frequently Asked Questions (FAQ)

1. Can the 8x4 cargo truck chassis be customized for different bodies?

Yes, absolutely. The chassis is versatile and, thanks to the installed PTO, can be fitted with various bodies such as a cargo box, dump bed, fuel tanker, or crane upon arrival.

2. Why is the "old face" HW76 cabin popular in Africa?

The HW76 "old face" design involves a steel bumper and a higher ground clearance compared to newer, more aerodynamic models. This makes it more durable and less prone to cosmetic damage on rough roads, which is highly valued by our African clients.

3. What is the lead time for a Brand new 8x4 cargo truck?

Generally, production takes approximately 15 to 25 days depending on the specific customization requirements. Shipping time to African ports varies but usually takes between 30 to 45 days.
